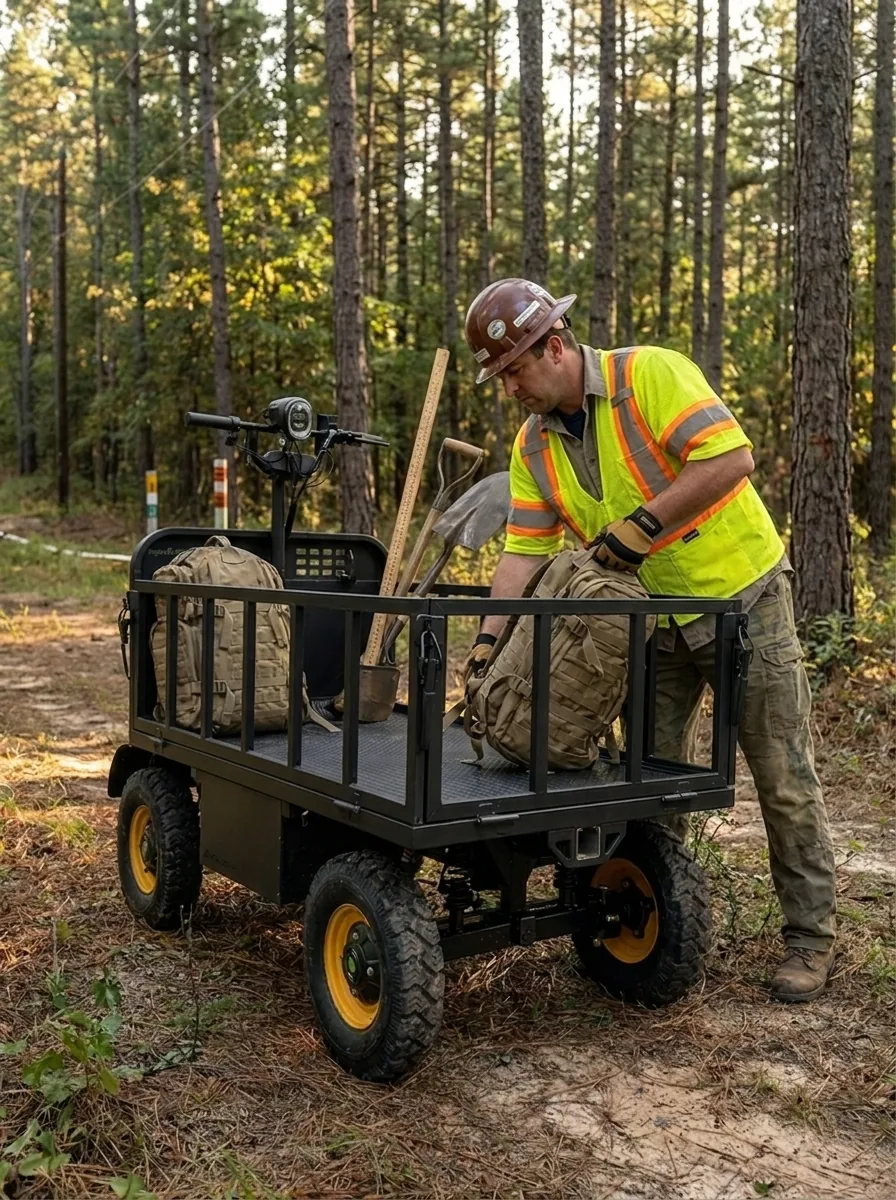

Load
Stage the inspection equipment for the route.
03 / FIELD MOBILITY

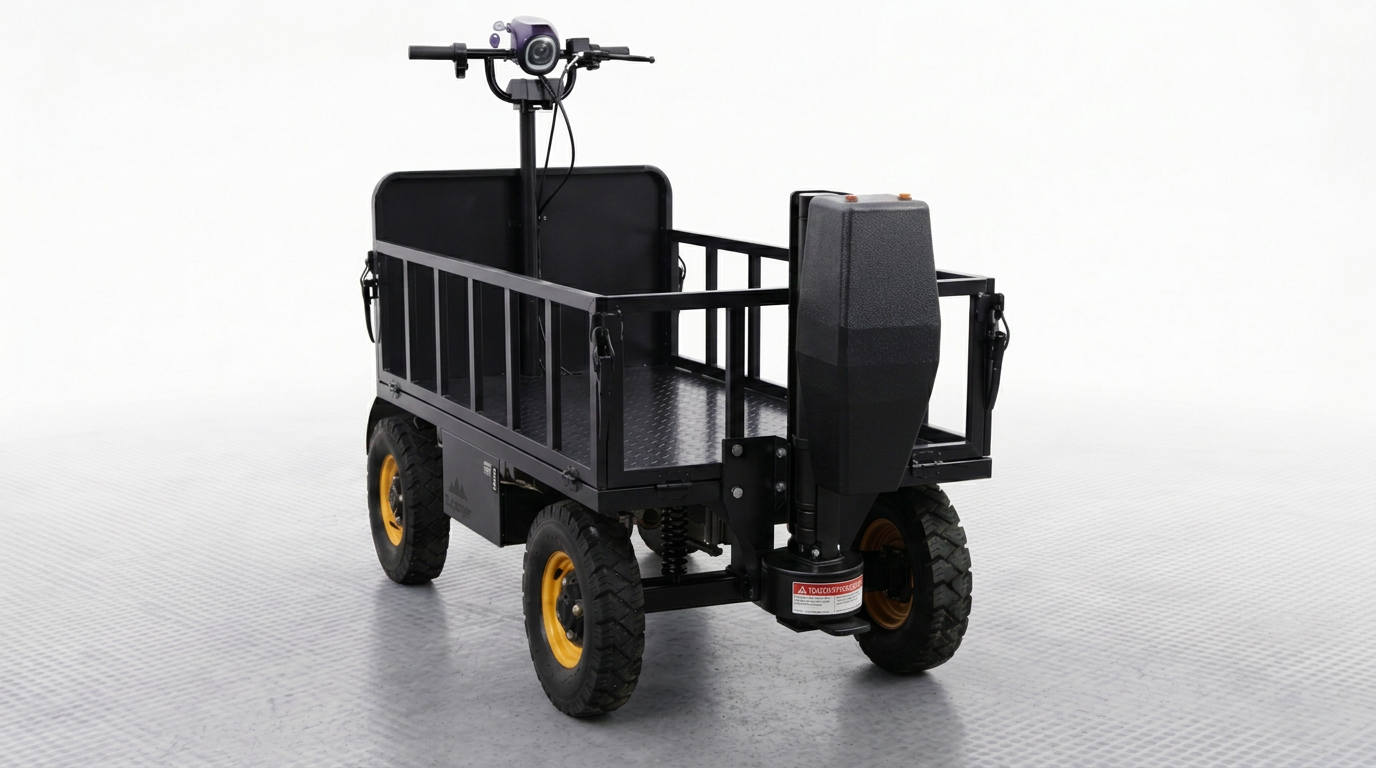

RS-EUV Electric Utility Vehicle
Bigger than a wheelbarrow. Smaller than a truck.

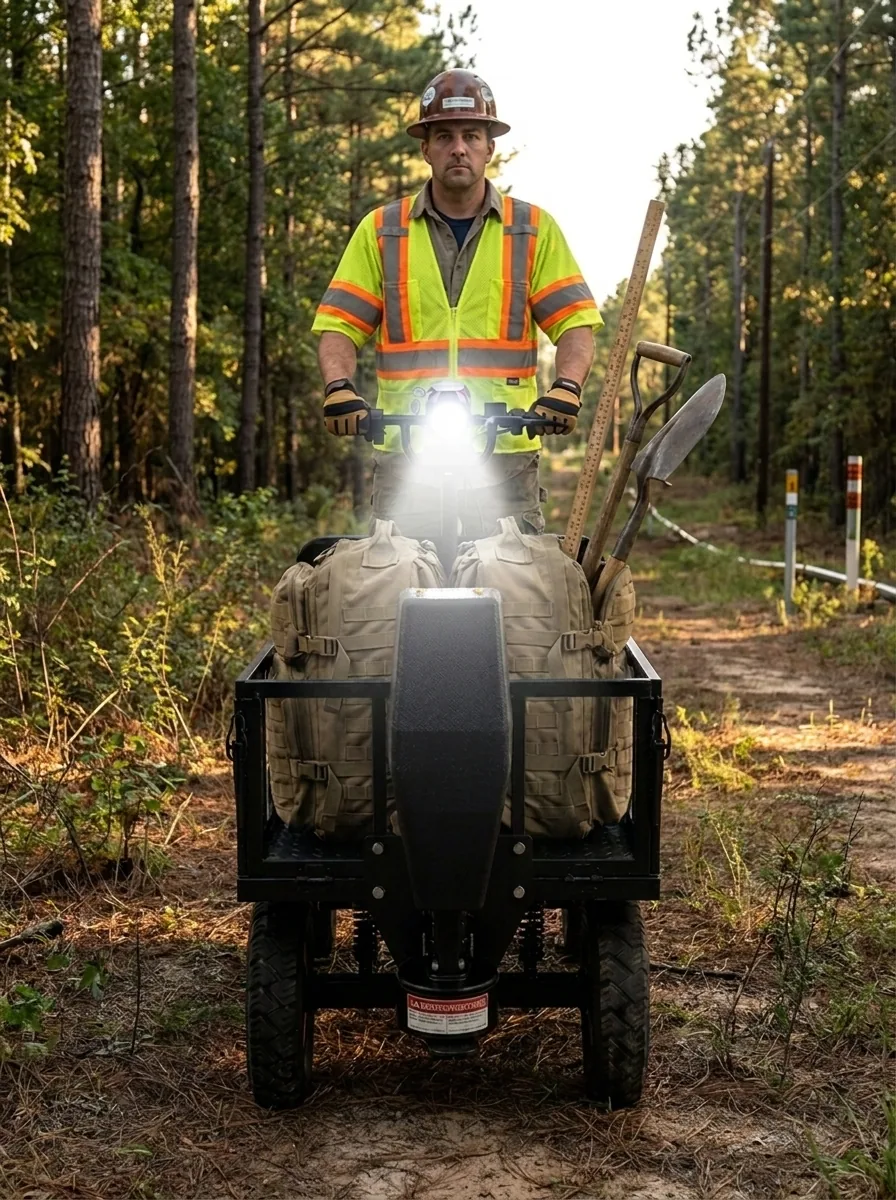

FIELD-READY SYSTEM
Half-ton capacity. Goes where your truck can't.
No more heavy lifting or trekking back to the truck — field crews can now inspect a remote structure with ease.
Explore the safety approach →
03 / FIELD MOBILITY
Inspect off-road structures in minutes, not hours.
Bigger than a wheelbarrow. Smaller than a truck.

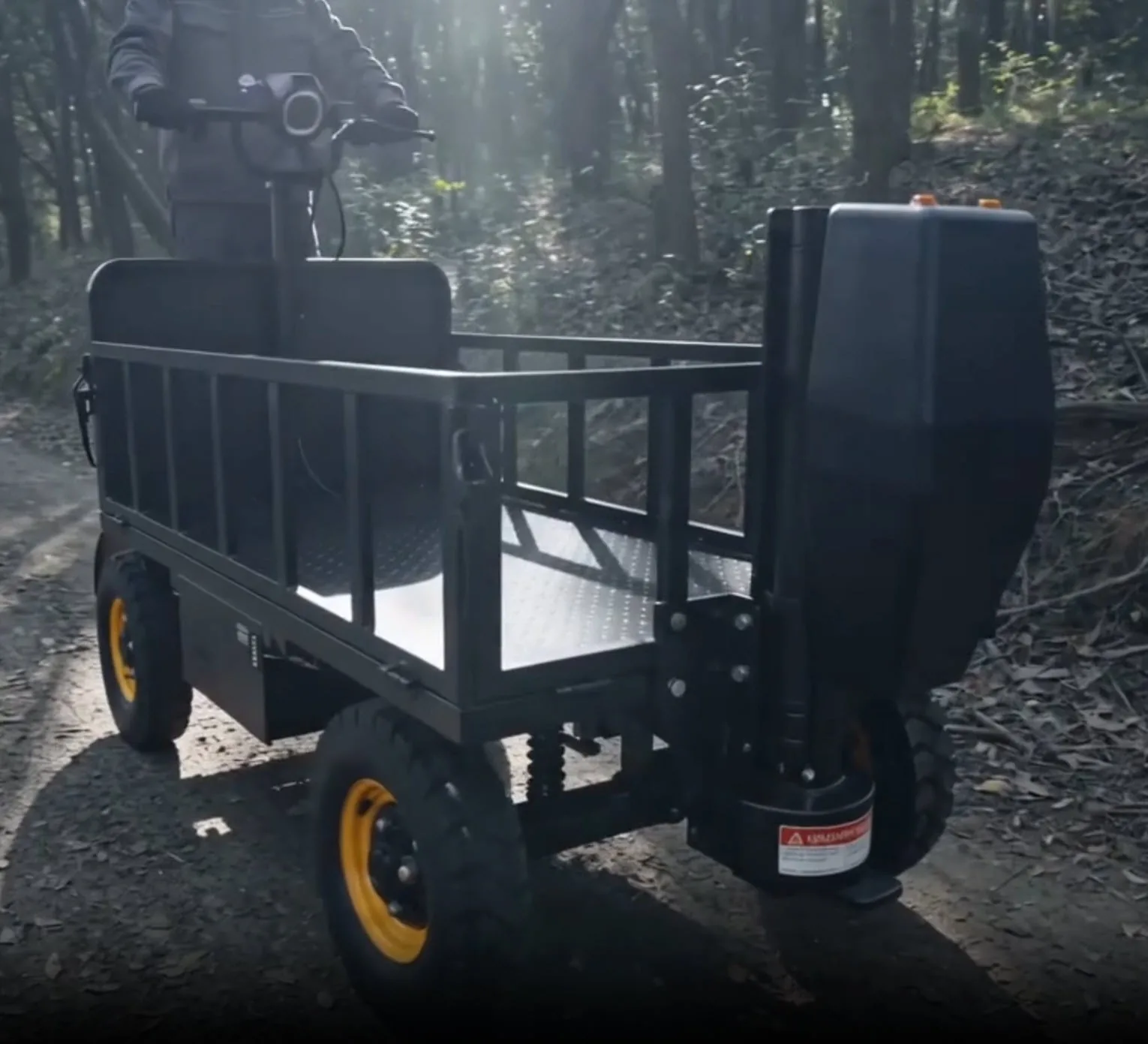

01
1,200W of muscle
A 1,200W brushless motor on a 60V dual battery system. Roughly 33 miles per charge with a top speed of 15 mph.
02
Smoother acceleration
Power ramps in cleanly off the line instead of jumping. Creeping through a gate or easing up to a trailer is precise and predictable.
03
Controlled descent on hills
Going down a grade, the controller holds the RS-EUV back and governs your speed — so you're not riding the brake the whole way down, loaded or empty.
Hauling capacity1,000 lb
Top speed15 mph
Range per charge33 mi
Motor1200W

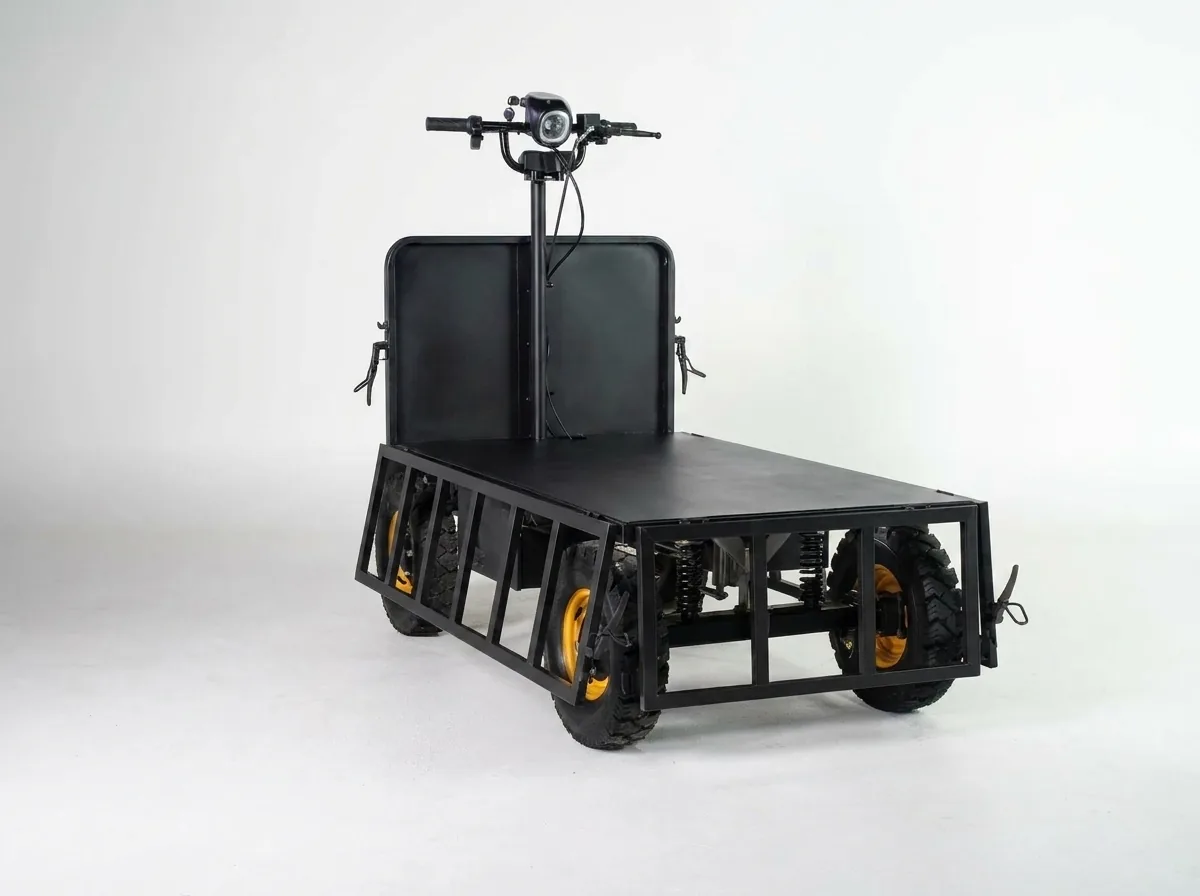

FIT & FIELD WORKFLOW
Not just inspections. Any remote work, heavy payload, smaller footprint — simplified.
More power, a smarter controller, and fitment for gear out of the box.
- Motor
- 1200W Brushless
- Battery System
- Dual 60V
- Charging System
- 110V charger
- Personal Charging Ports
- USB-C + USB-A
- Color
- Matte Black
- Brakes
- Dual Disc
- Accessibility
- Fold-down sides
- Hitch Receiver
- Front 2 inches
- RS-LIFTER / ELECTRIC WINCH
- Available / Not Included
- Warranty
- 2 years
- Assembly Required
- Arrives fully assembled
- Weight
- 482 lbs
- Payload
- 1000 lbs + driver
- Range
- 33 miles
- Top Speed
- 15 mph, two gear settings
- Turning Radius
- 8 ft
- Reverse Drive
- Yes
- Power On
- Two keys included
- Controlled Descent
- Yes
- Hill-hold assist
- Yes
- Cargo bed
- 59 × 31 in
- Rail height
- 13.75 in
- Bed height
- ~20 in
- Wheelbase
- 48.5 in
- Overall length
- 65 in
- Overall width
- 31 in
- Overall height
- 54 in
- Ground clearance
- ~8 in
Overall length is measured fender to fender with the rear operator step folded — drawings show the step deployed. Stock tires 16 × 4 in. Fitting through gates: allow 33 in (838 mm); the side hinge brackets extend past the frame.
FIELD WORKFLOW
A clear process from vehicle to work area.
Plan the system around the sequence your crew repeats in the field.
Travel
Move from the vehicle to the access point.
Inspect
Support the remote-access inspection workflow.
BUILT FOR THE WORK
One system. Every kind of situation.
Scroll through the field views to see how the RS-EUV fits the equipment, route, and crew workflow.

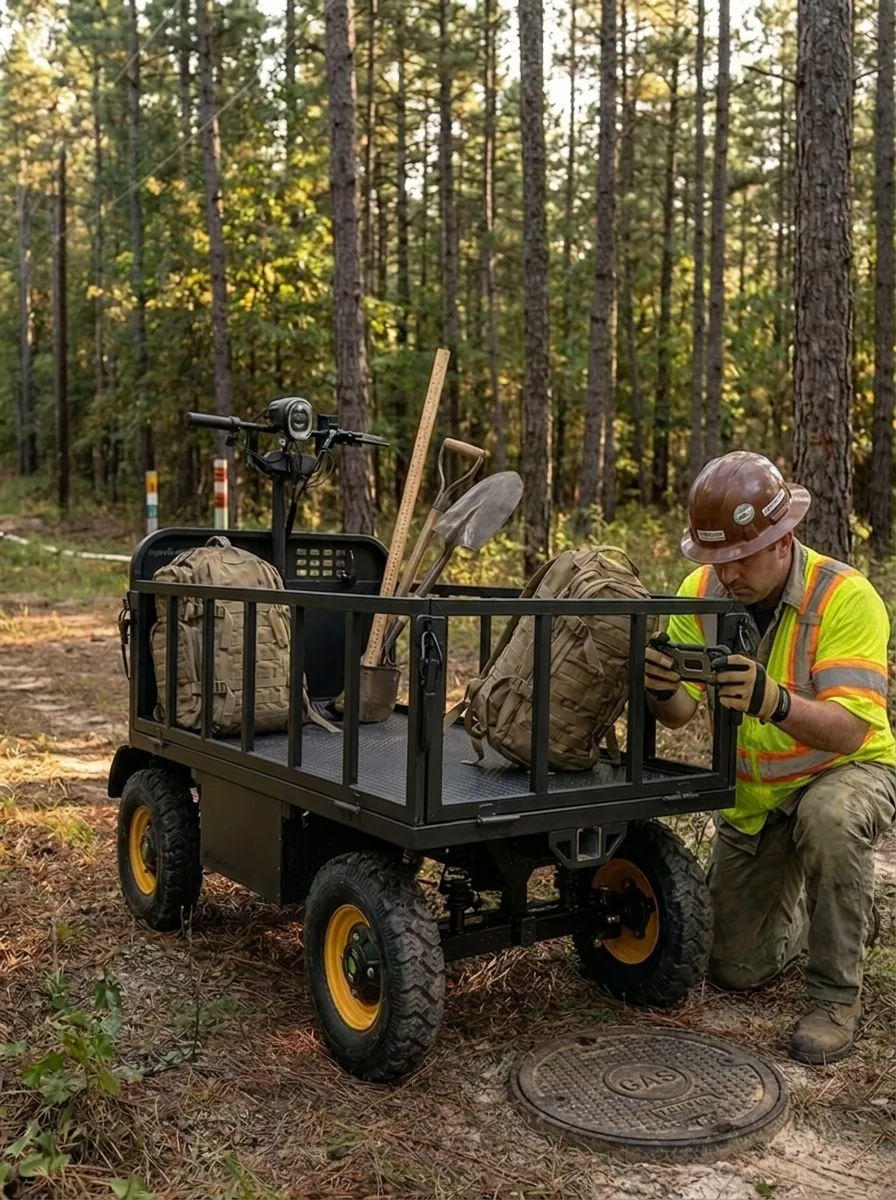

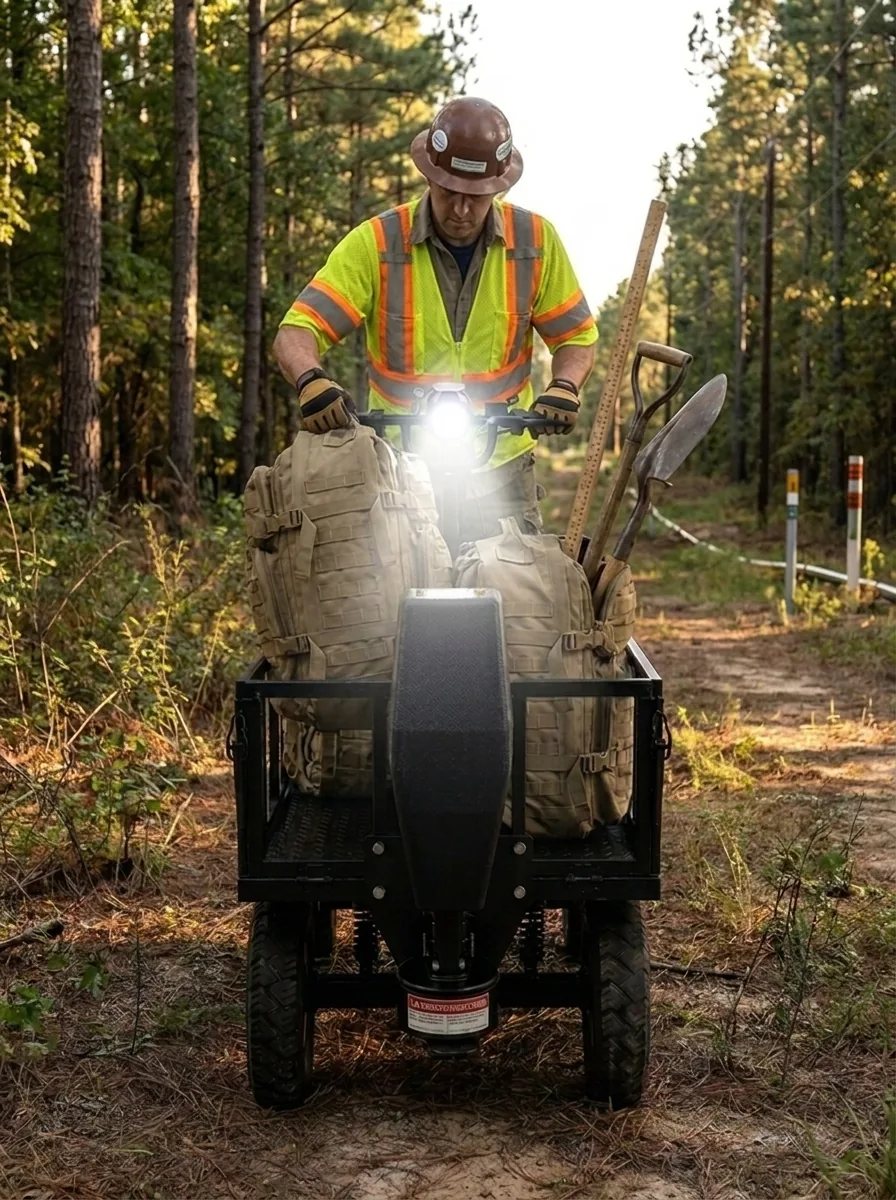

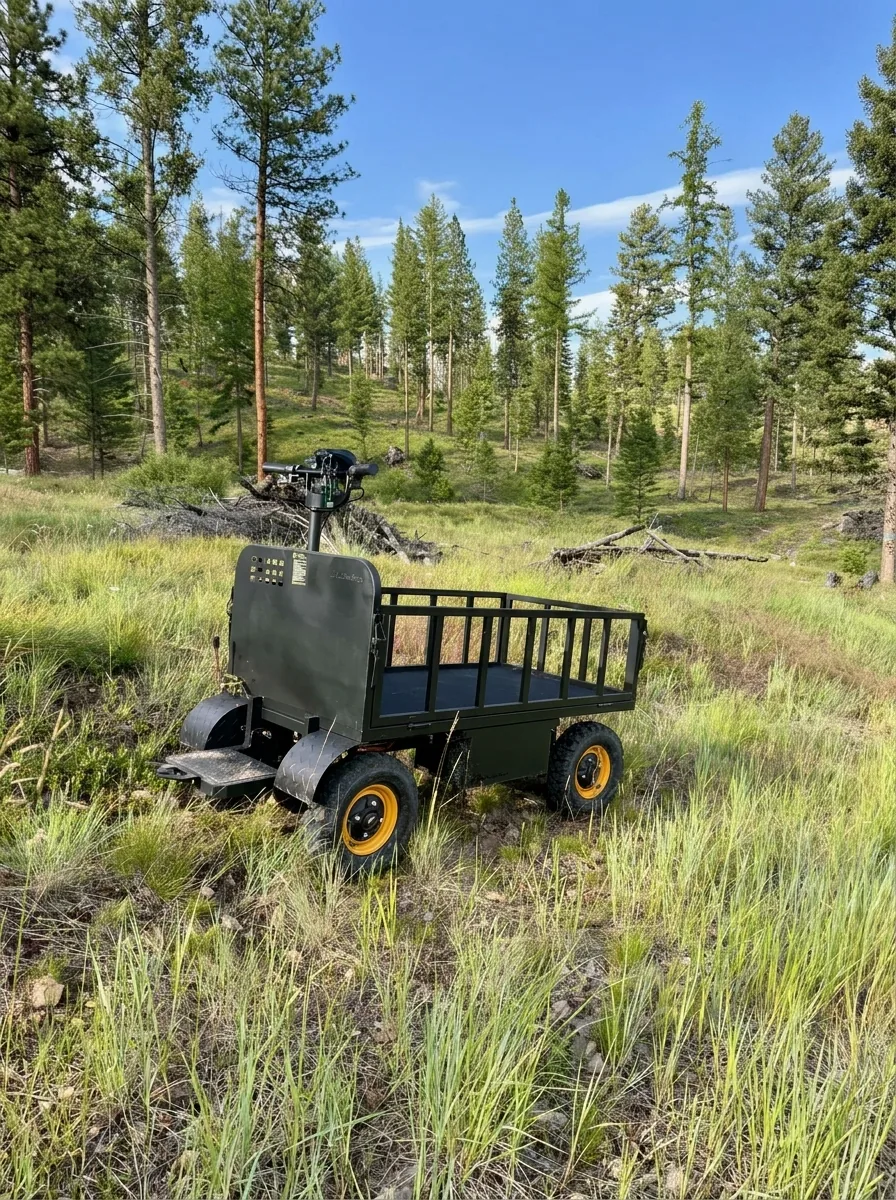

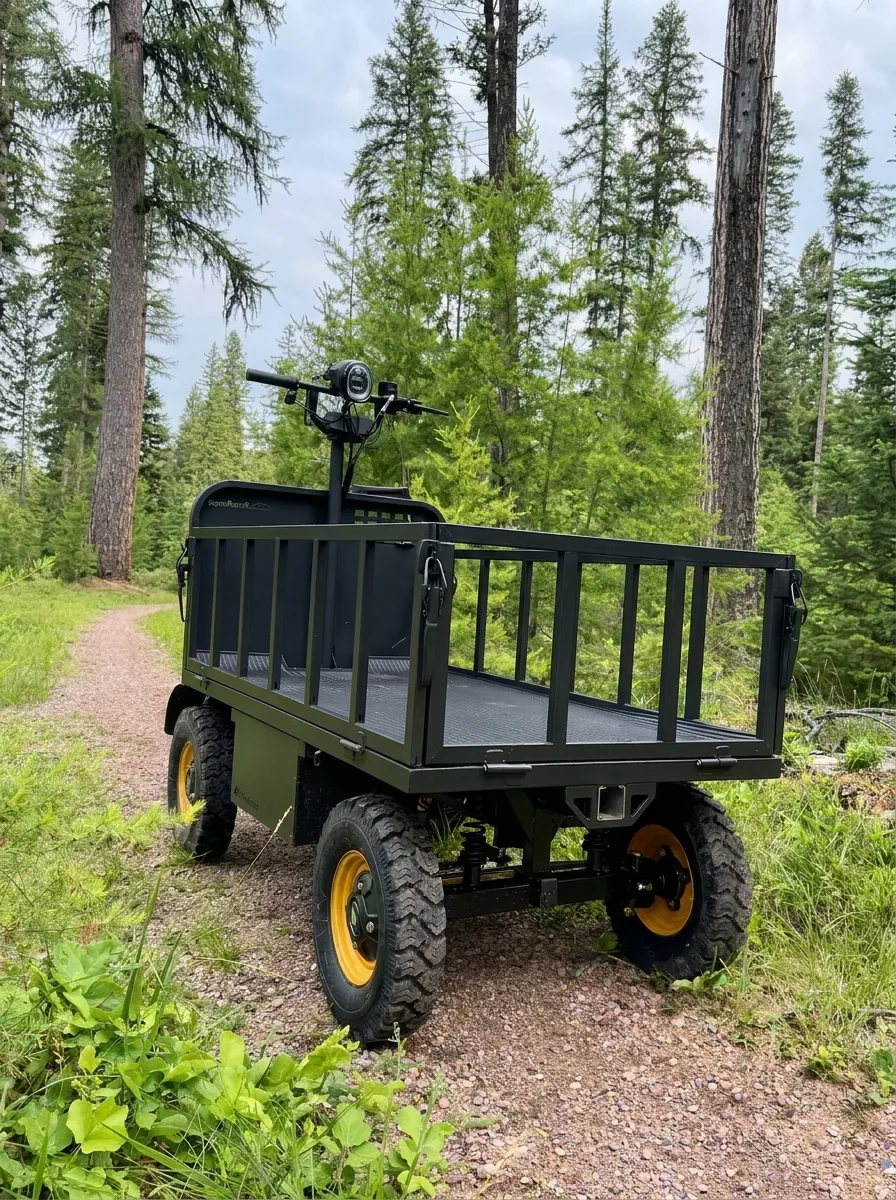

01 / Forest work

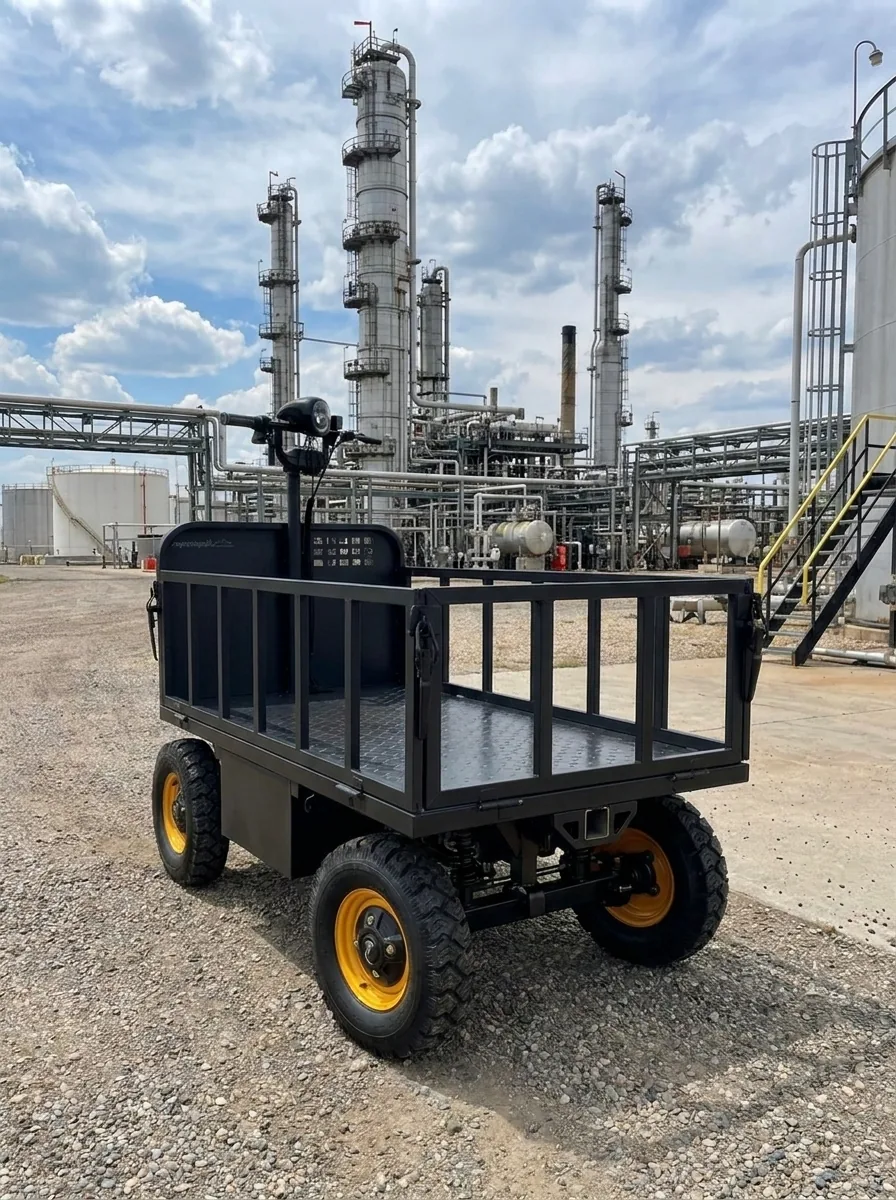

02 / Refinery work

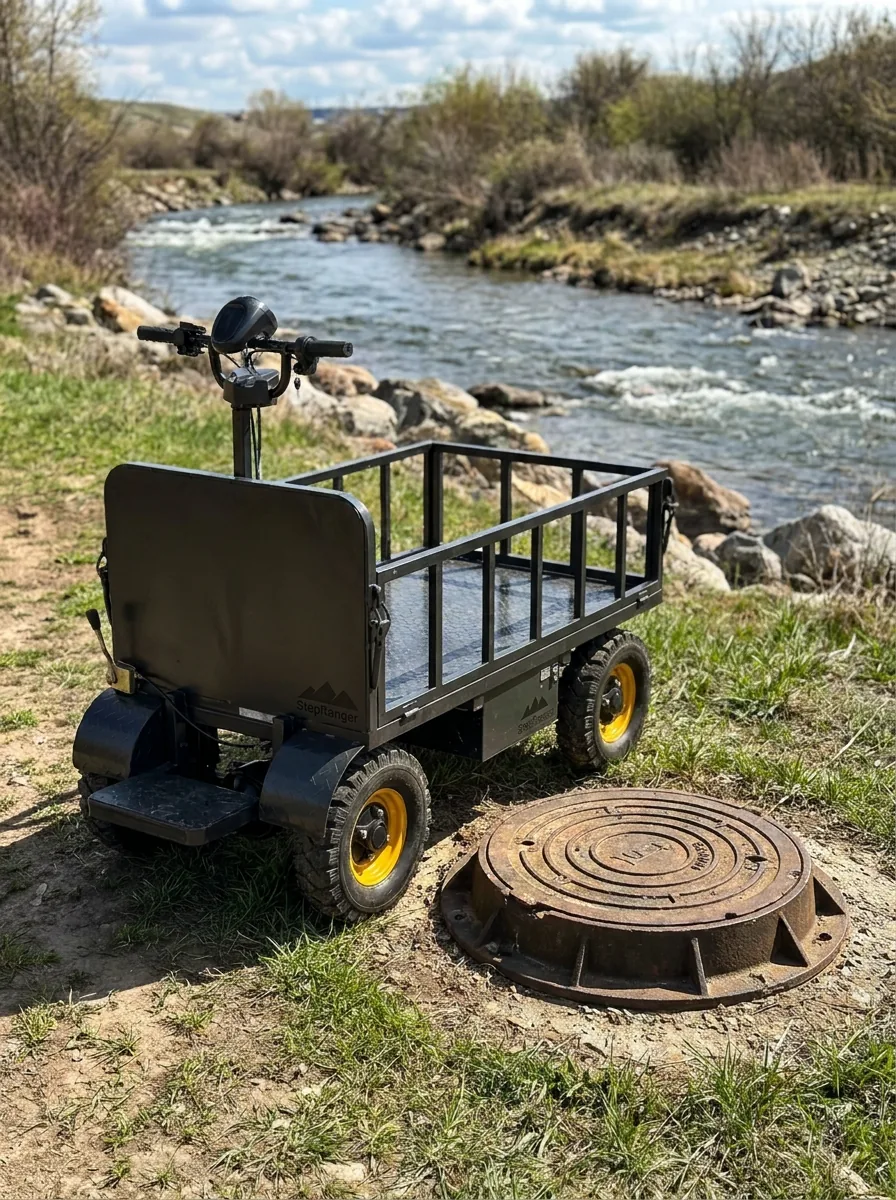

03 / Creek access

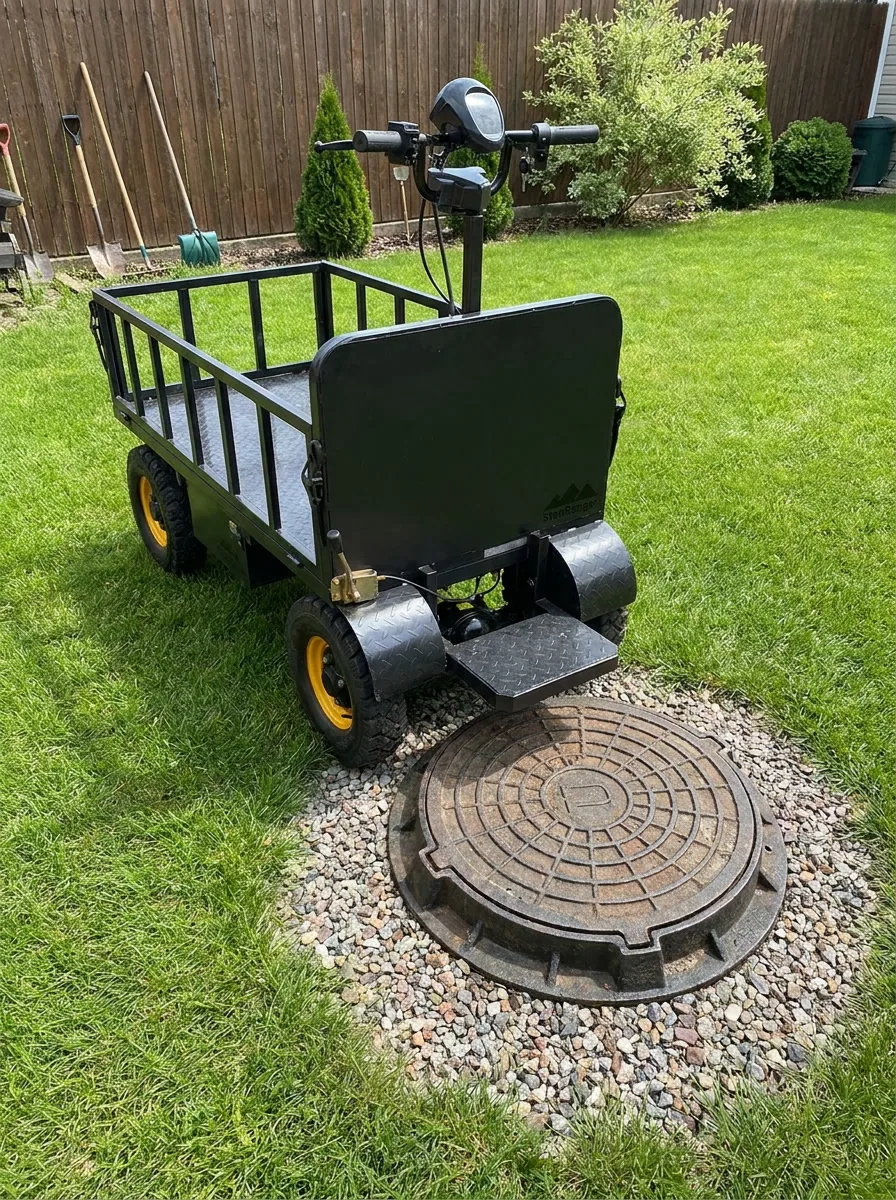

04 / Yard access

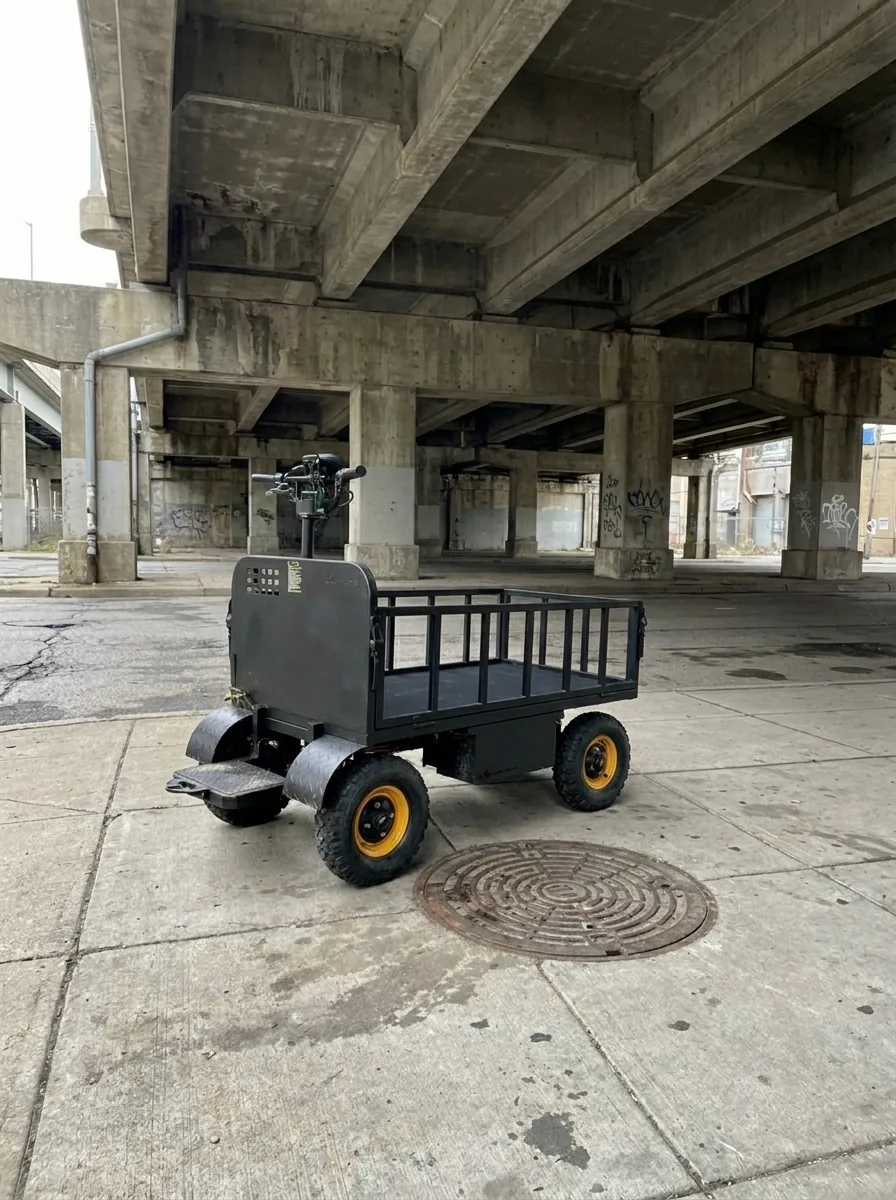

05 / Neighborhood work

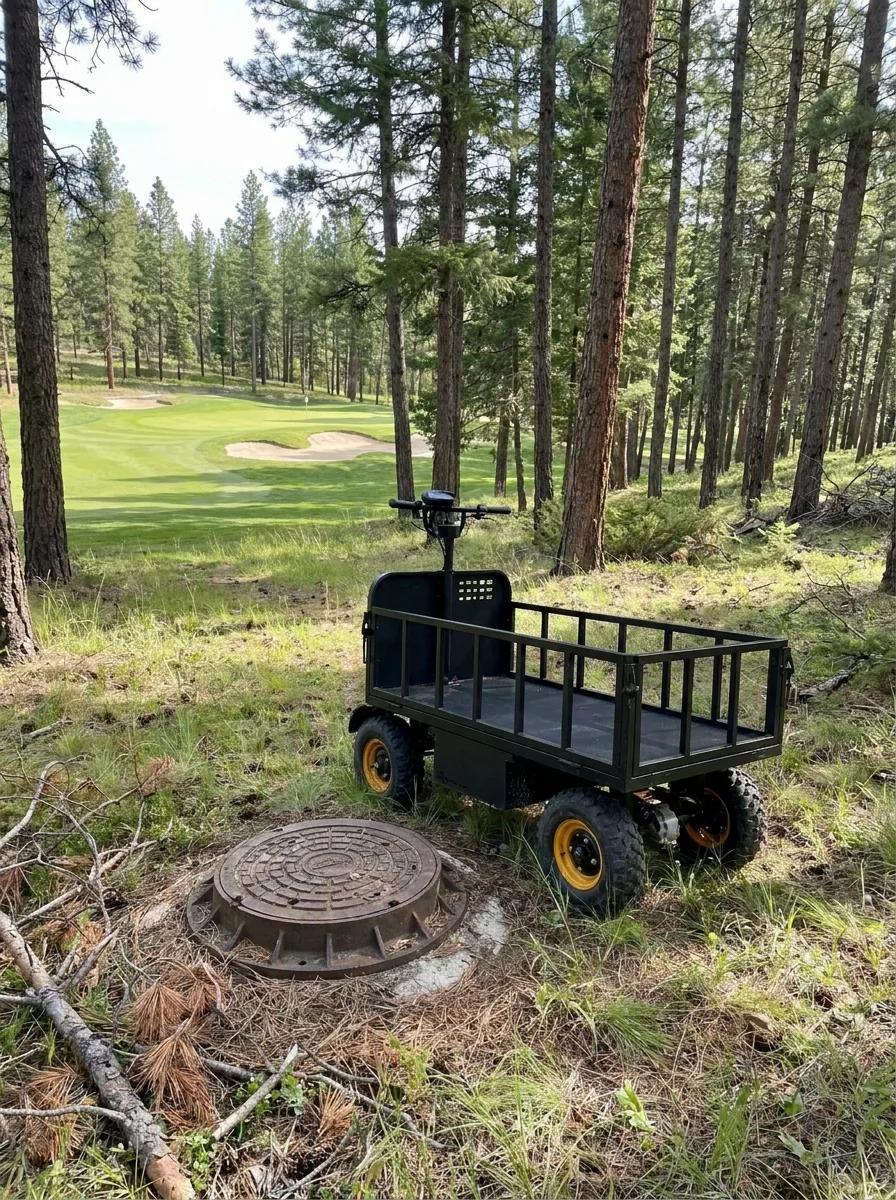

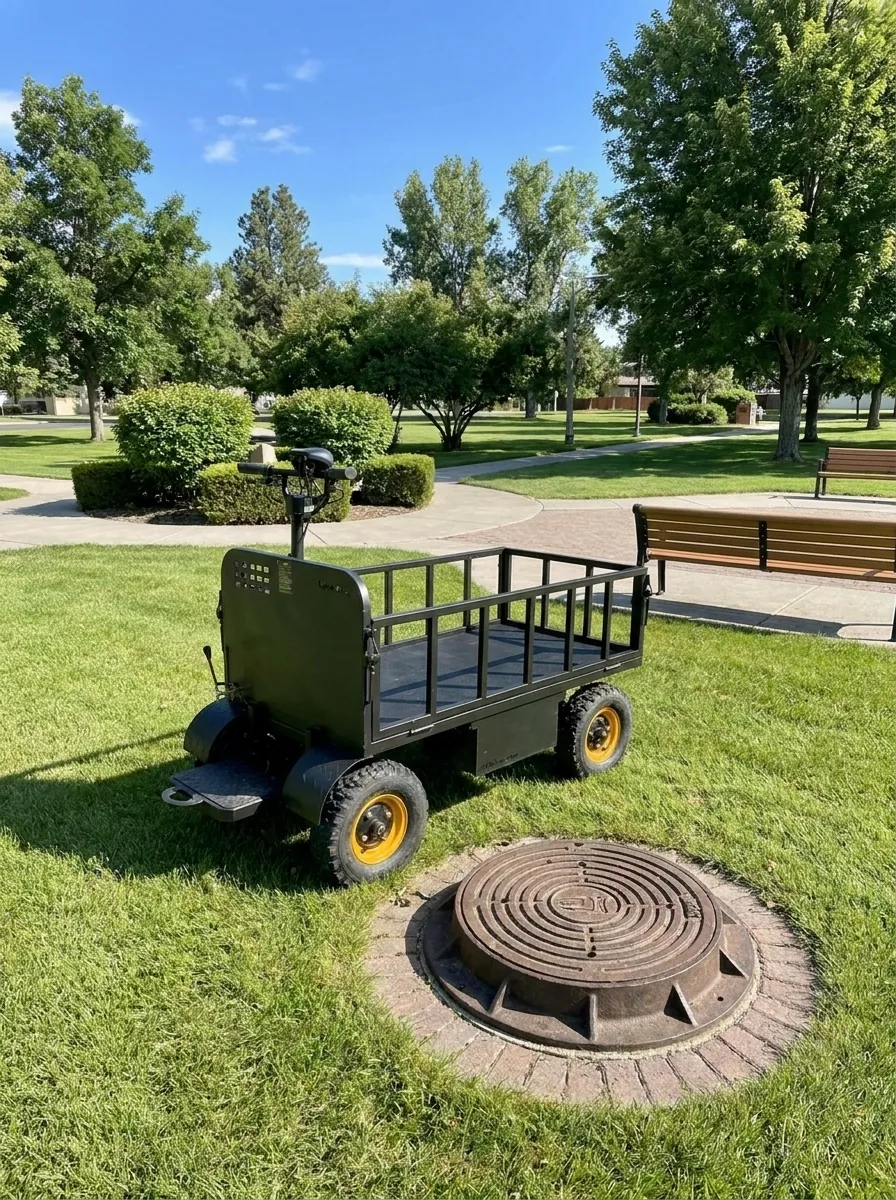

06 / Golf course
07 / Parks

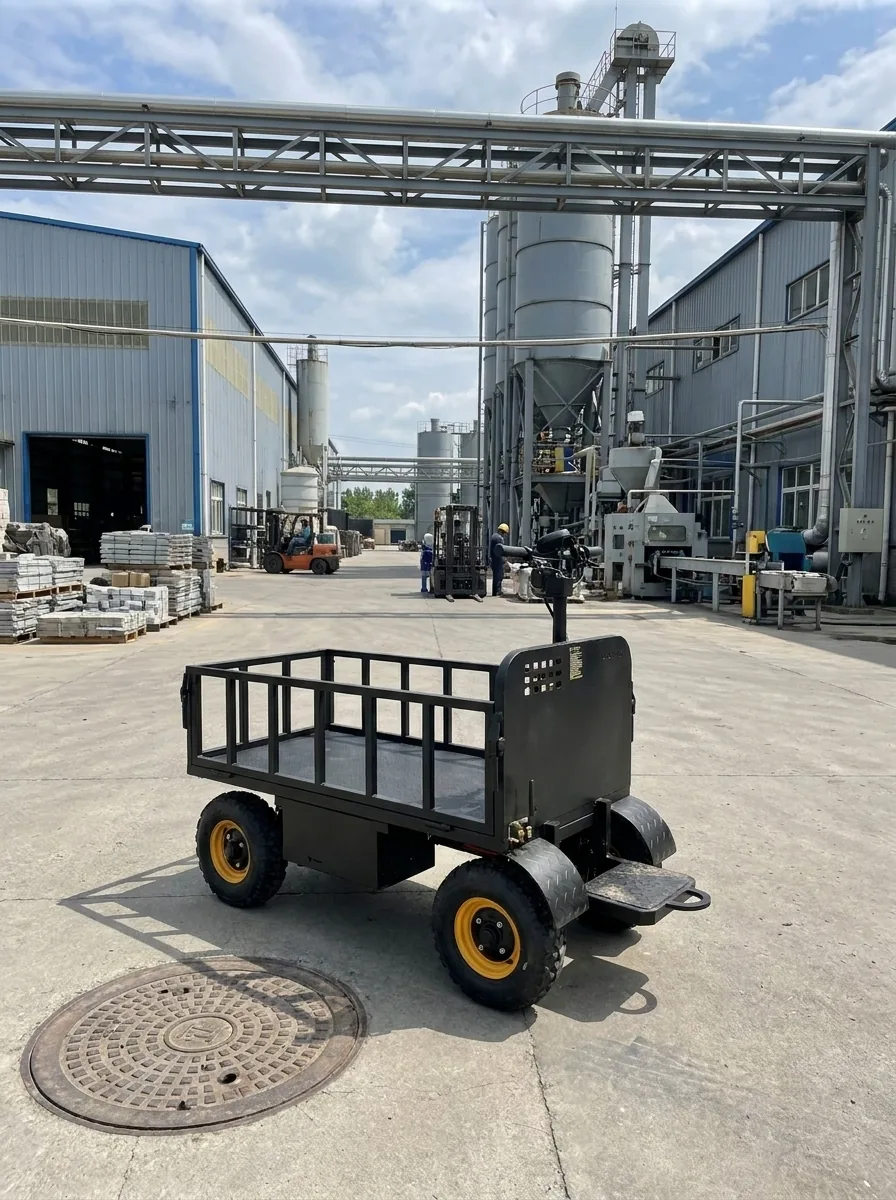

08 / Industrial site

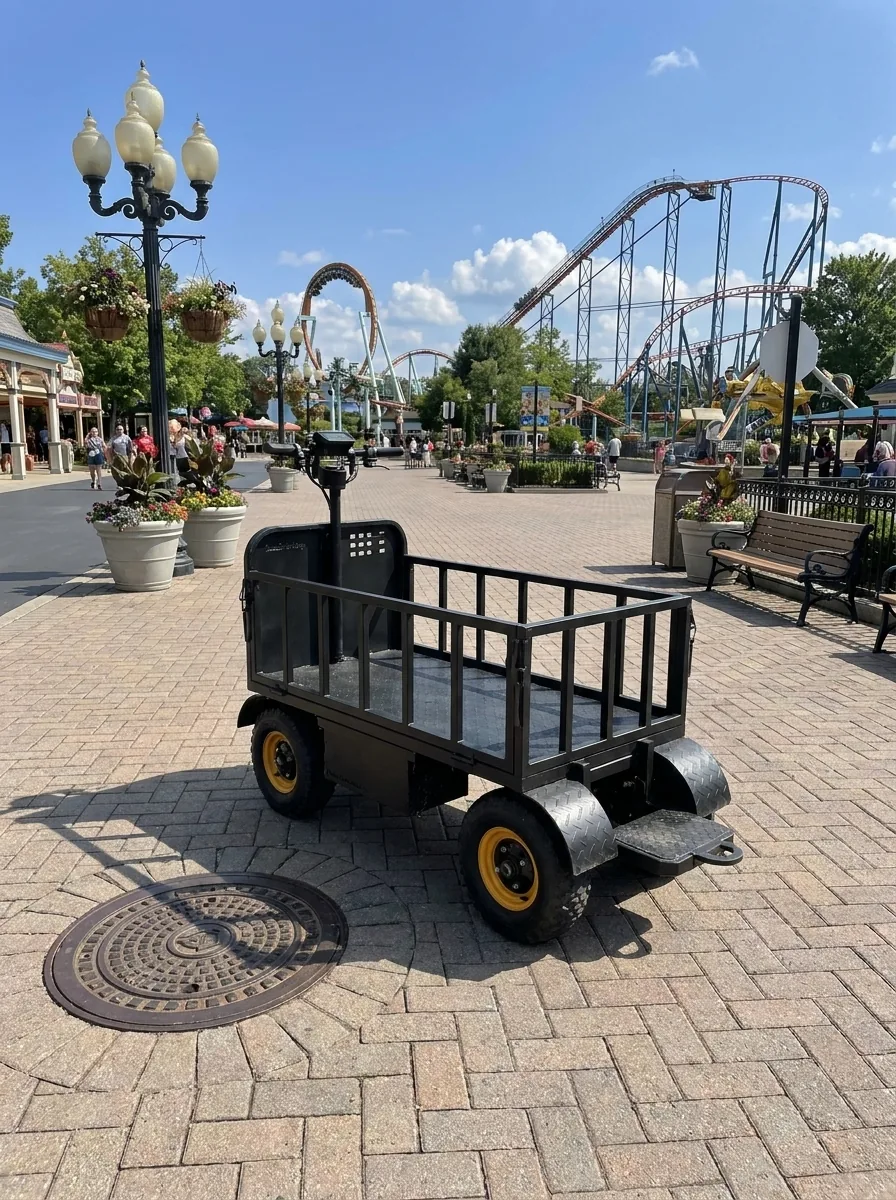

09 / Theme park

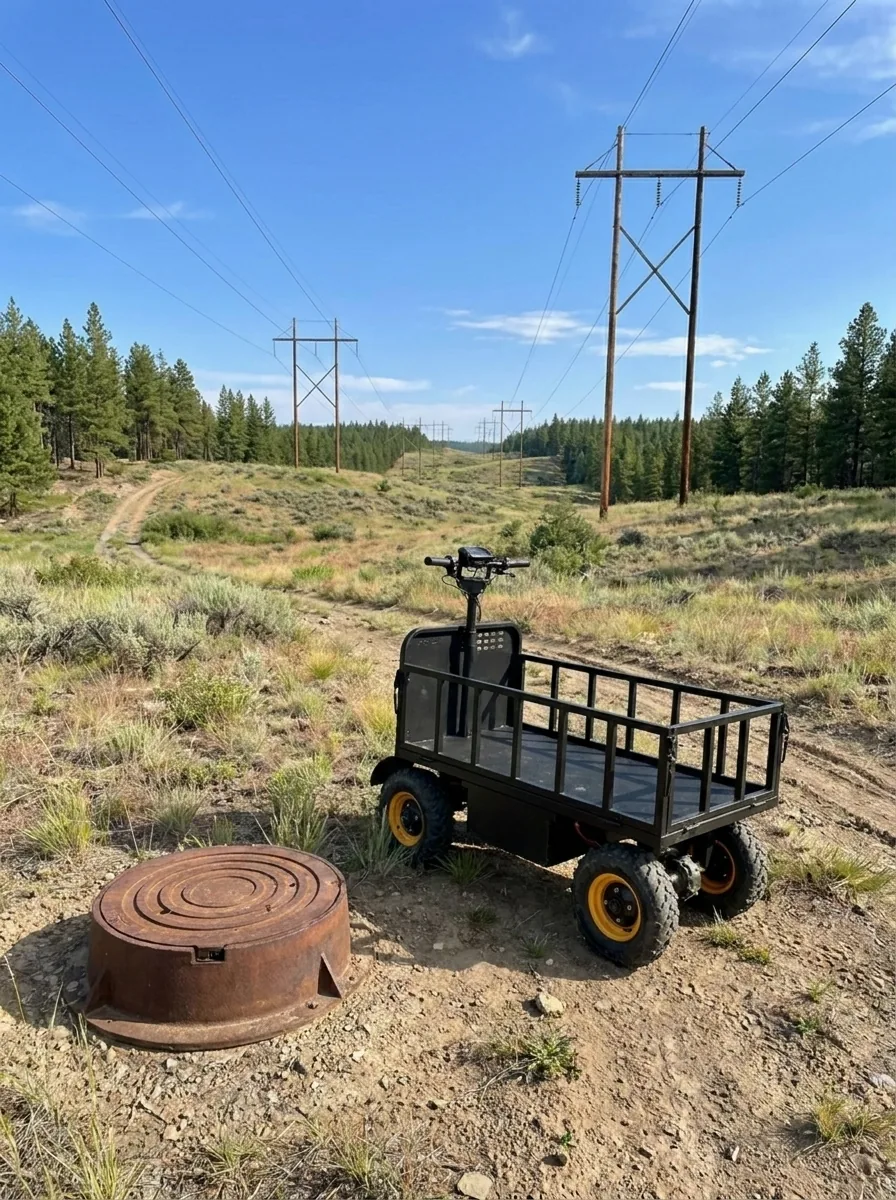

10 / Utility corridor

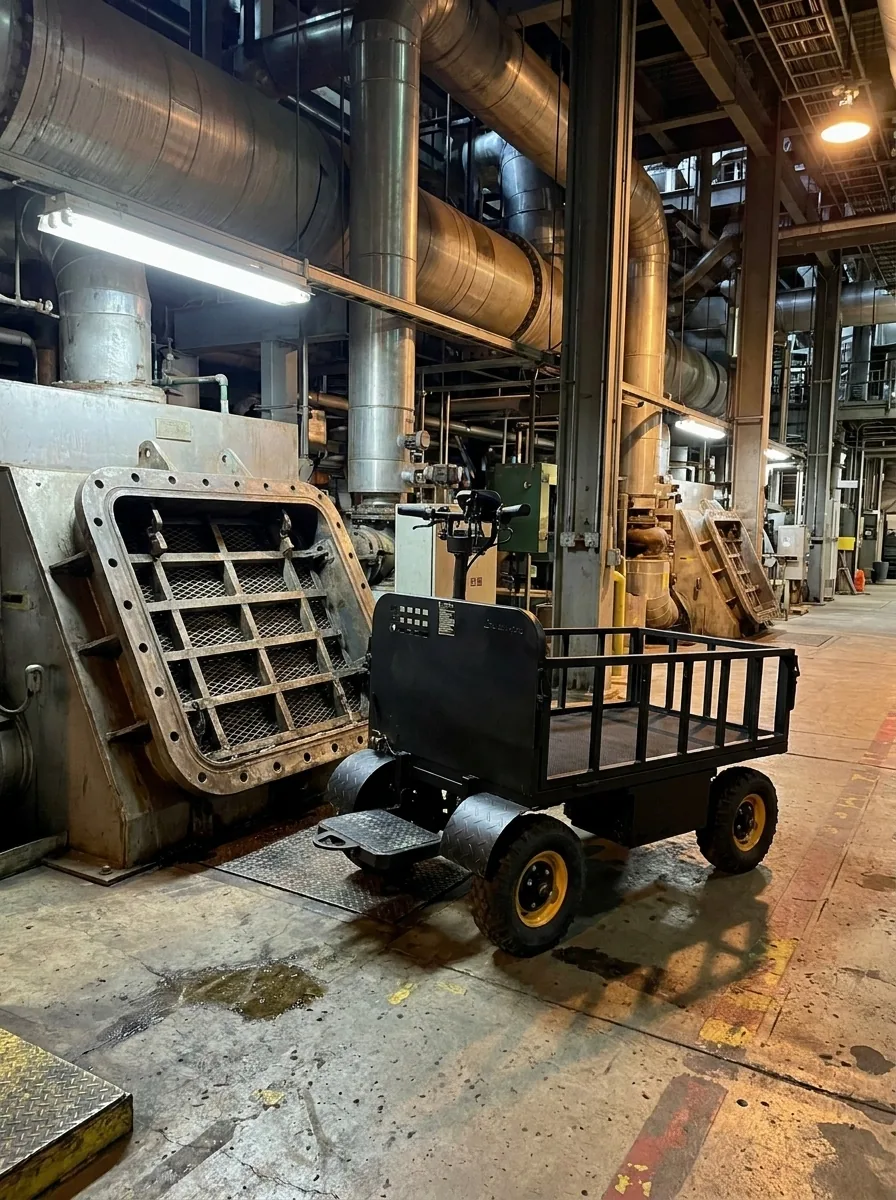

11 / Plant floor

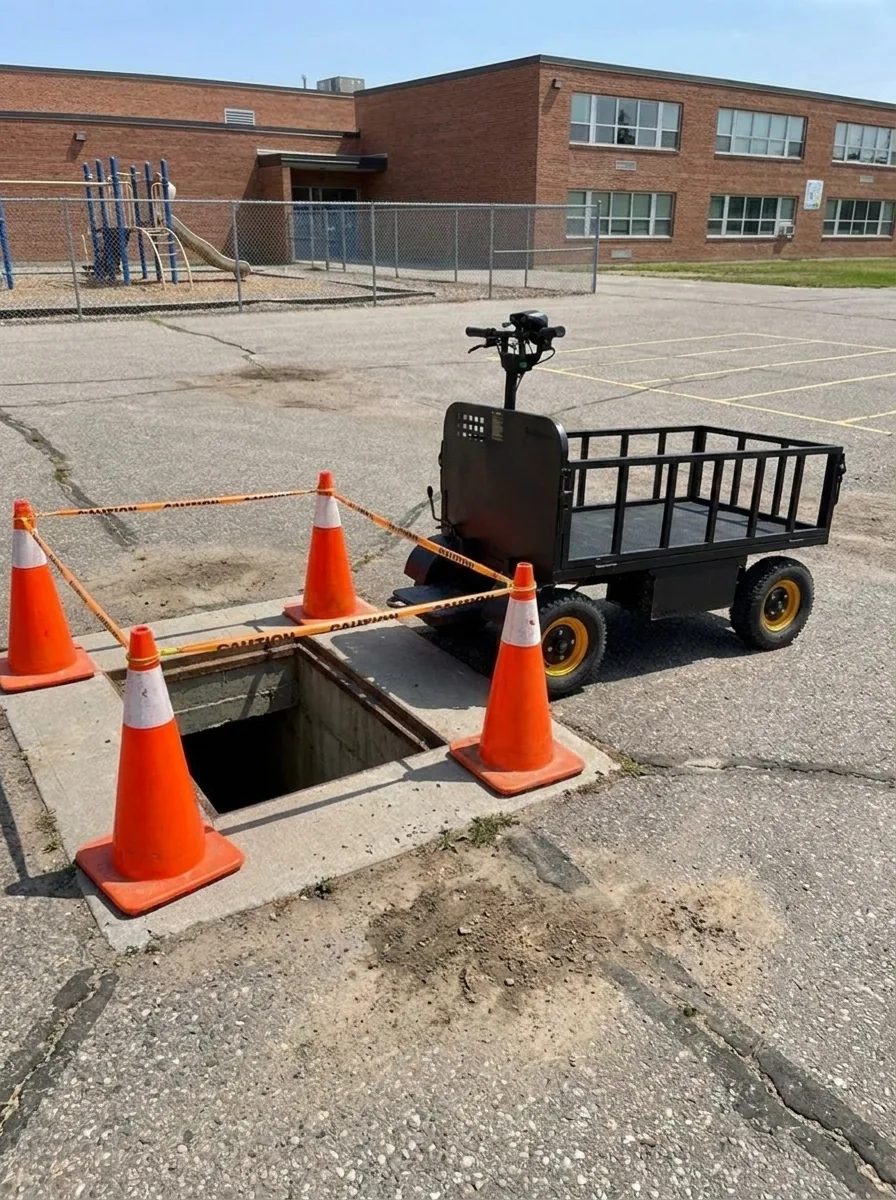

12 / School
Scroll down to exploreSee applications →
THE ROCK SAFETY STANDARD
The flexibility field crews want. The results management expects.
Bigger than a wheelbarrow. Smaller than a truck.
Explore safety features →Powerful
1200W motor that can handle payload up to 1000 lbs
Efficient
Top speed of 15 mph with a range of 33 miles per charge
Smart
Software controlled remote for controlled descent and auto stop on slope
QUICK ANSWERS
Remote access you can count on.
How does the RS_EUV ship?
It ships fully built in a protective crate via LTL freight with liftgate service if no dock is available. Setup is minimal — uncrate it, charge it, and go.
How far does it go on a charge?
About 33 miles on a full charge.
How do I charge it?
Plug the included 60V charger into any standard outlet and charge overnight. No special equipment required.
How much can it haul?
Up to 1,000 pounds — a half-ton — on a 59-inch by 31.5-inch cargo platform.

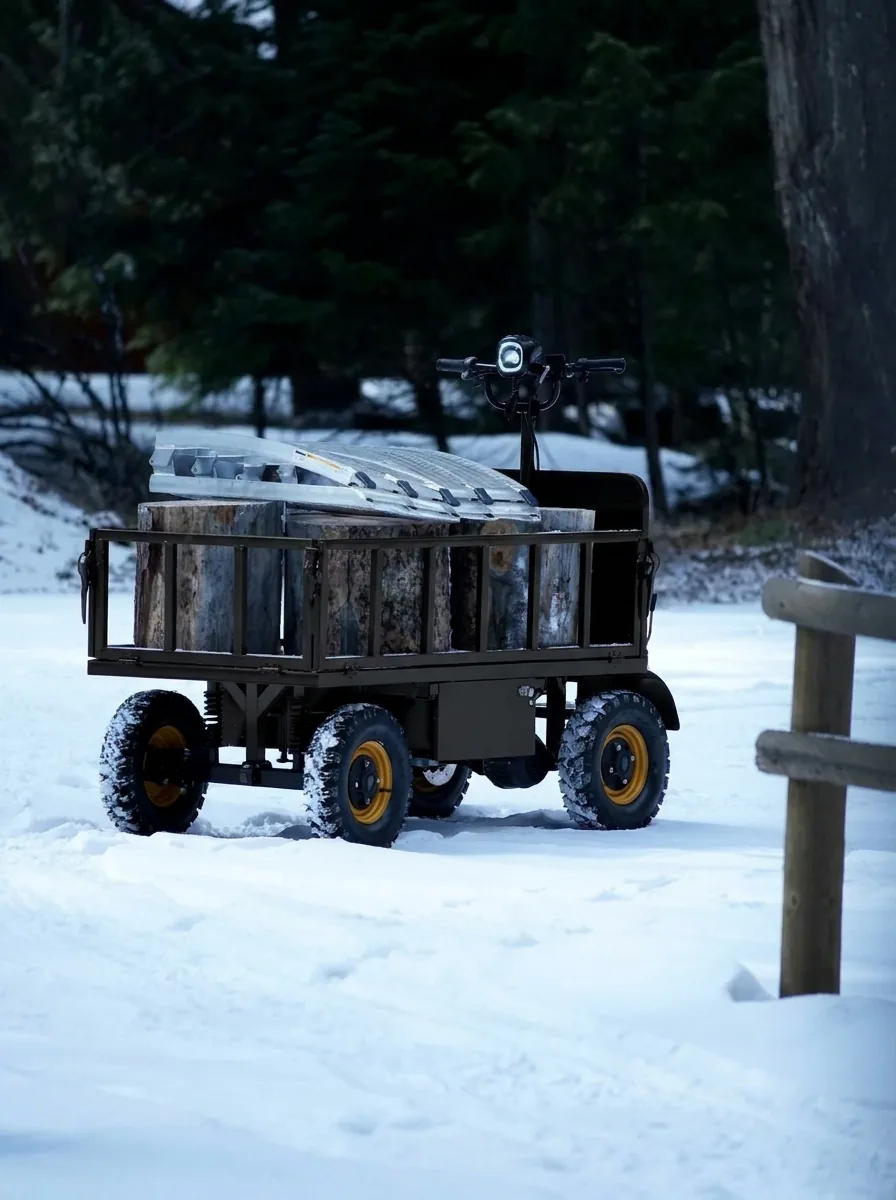

Stock or snow & mud tires?
Stock tires handle most yards, gravel, and trails. Snow & mud tires add grip for winter and loose ground. You can purchase the snow & mud tires kit anytime.
Is it street legal?
The RS-EUV is an off-road utility vehicle, not a street-legal vehicle. Check your local rules for private-property and low-speed use.
What about warranty and support?
Every RS-EUV includes a 2-year warranty.
REQUEST A QUOTE
Pair the RS-EUV with other Rock Safety gear.
Clients typically receive a quote by email before placing an order.
Request a Quote
