Standard

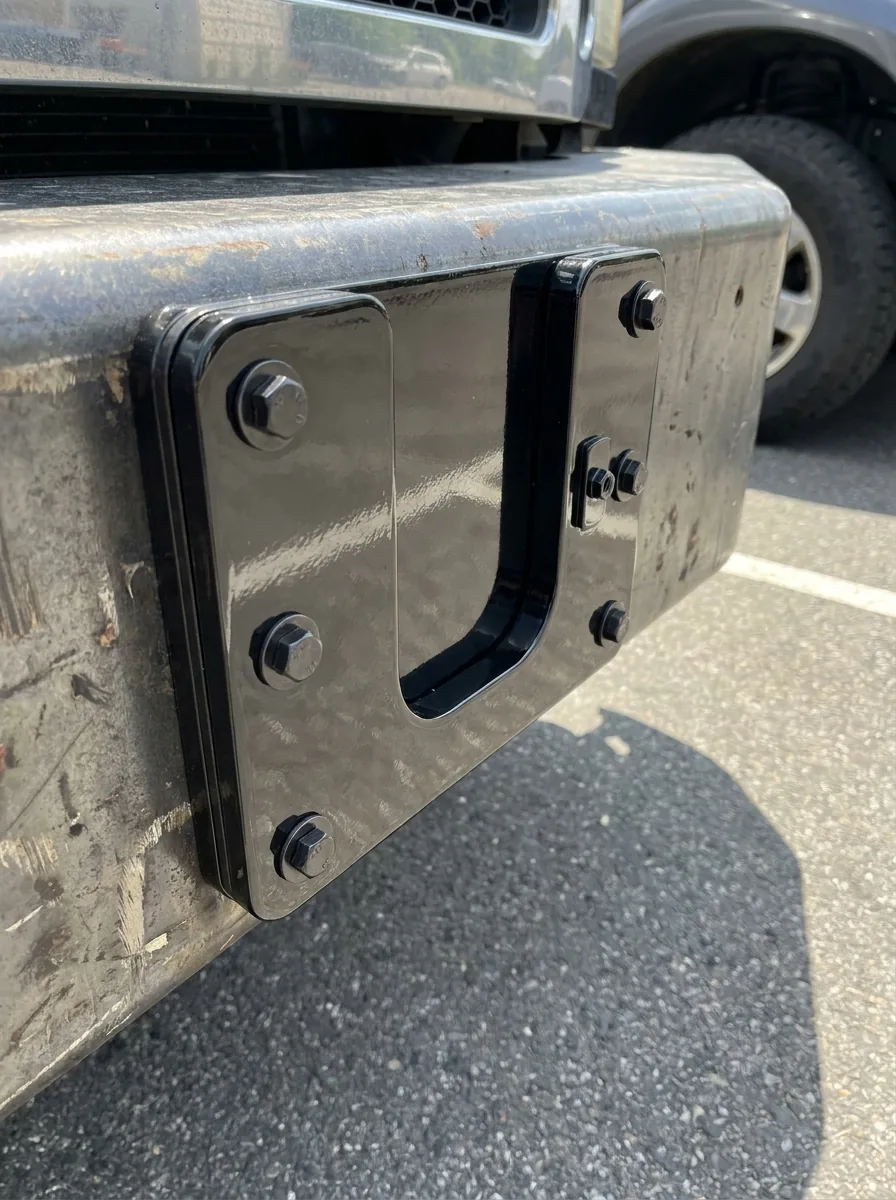

Bolt-on mount
Permanent bolt-on installation for maximum stability.
01 / RS-LIFTER
RS-LIFTER
Remote-operated hydraulic and magnetic lifting configured around access-cover work.
FIELD-READY SYSTEM
Configured around the crew, route, and work zone.

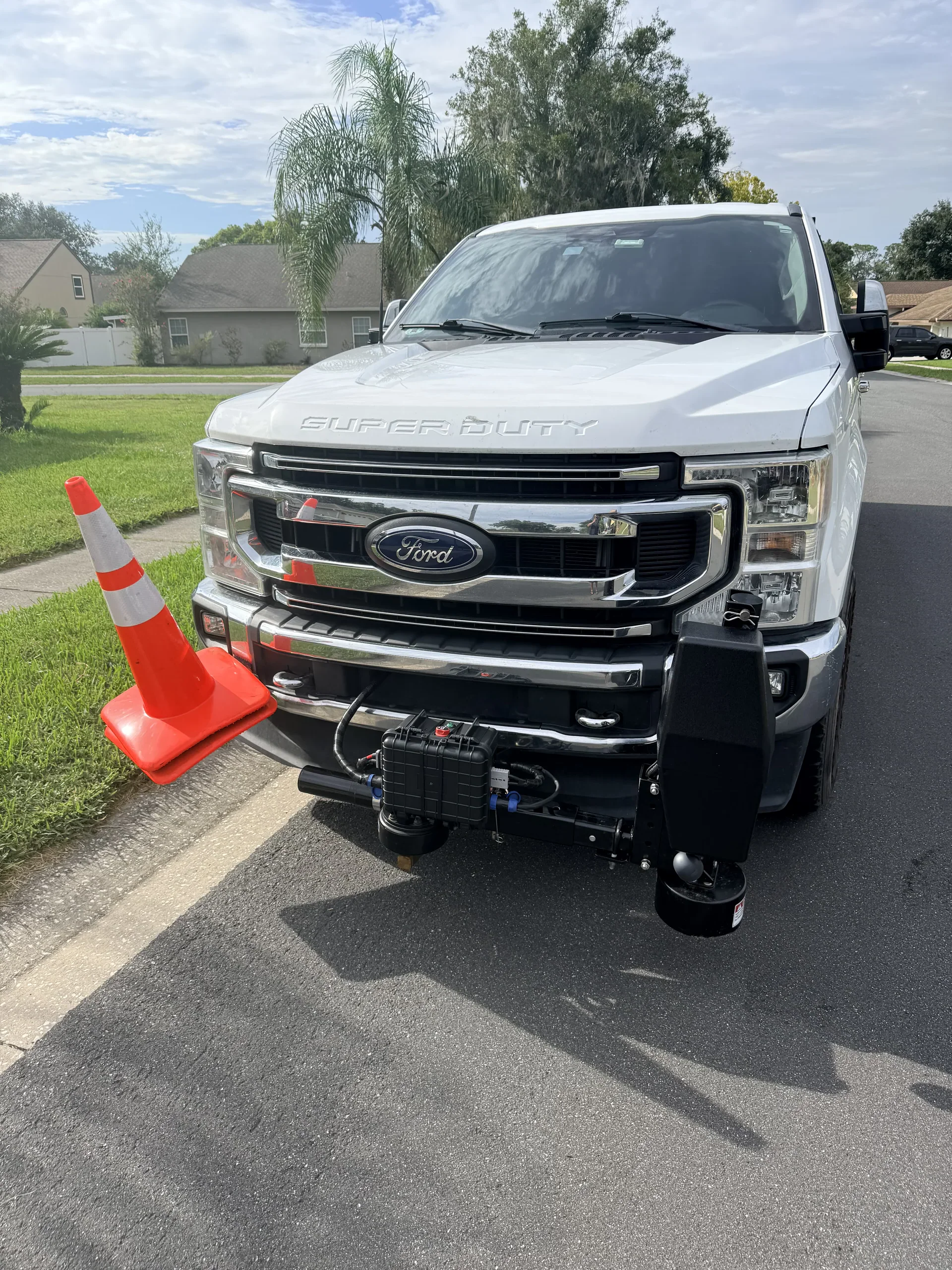

Configure the lifter to be controlled from inside or outside the vehicle. Select the correct mount for your type of vehicle.
Explore the safety approach →
01 / RS-LIFTER
RS-LIFTER
Remote-operated hydraulic and magnetic lifting configured around access-cover work.
01
Highly adaptable
Mounts to almost any vehicle with a 12V battery supply. Hitch or bolt-on mount.
02
Maximize productivity
Fully motorized swing arm centers the magnet for the quickest cover opening in the industry.
03
Optimize safety
Build a repeatable process intended to reduce strain, injuries, and avoidable downtime.
FIT & FIELD WORKFLOW
Fit for the work, not a fix around it.
Review the product by its operating functions, then discuss the final configuration with Rock Safety.
- Weight
- 32 lbs / 97 lbs with magnet
- Length (with camera & magnet)
- 38 inches
- Lifting capacity
- 600 lbs
- Voltage
- 12 volts
- Vehicle receptacle
- 2" hitch
- Frame – adjustable height
- Yes
- Cylinder stroke
- 16 inches
- Gloss black powder coating
- Yes
- Minimum vehicle capacity
- 3/4 ton – 2,500 lbs
- Vehicle battery capacity
- 800 amps
- Remote
- Pendant
- Hydraulics
- Automatic transmission oil

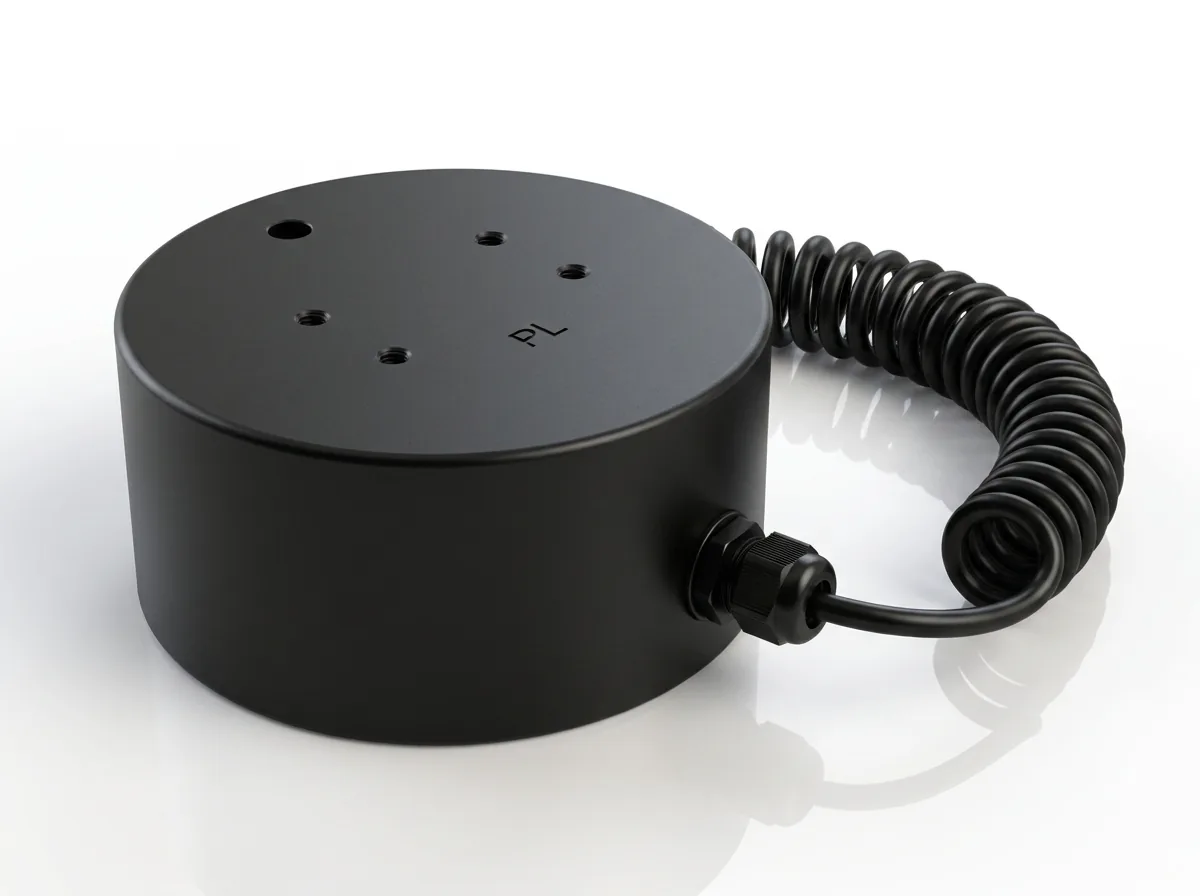

- Weight
- 48 lbs
- Diameter with connector
- 8 inches
- Amps
- 17 amps
- Voltage
- 12 volts
- Adherence equivalent
- 3,500 lbs

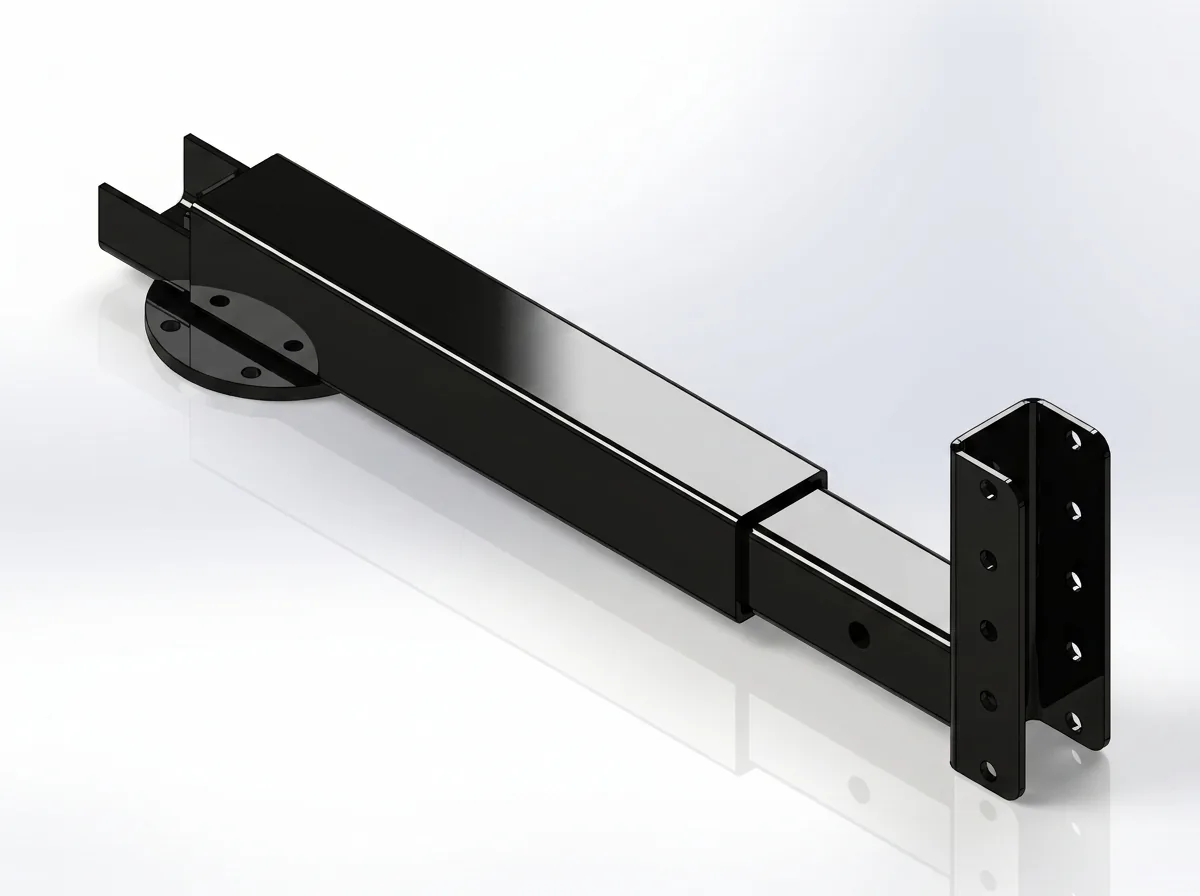

- Weight
- 30 lbs
- Length closed
- 24 inches
- Length opened
- 30 inches
- Motor
- Linear actuator
- Voltage
- 12VDC
- Material
- Steel Powder Black

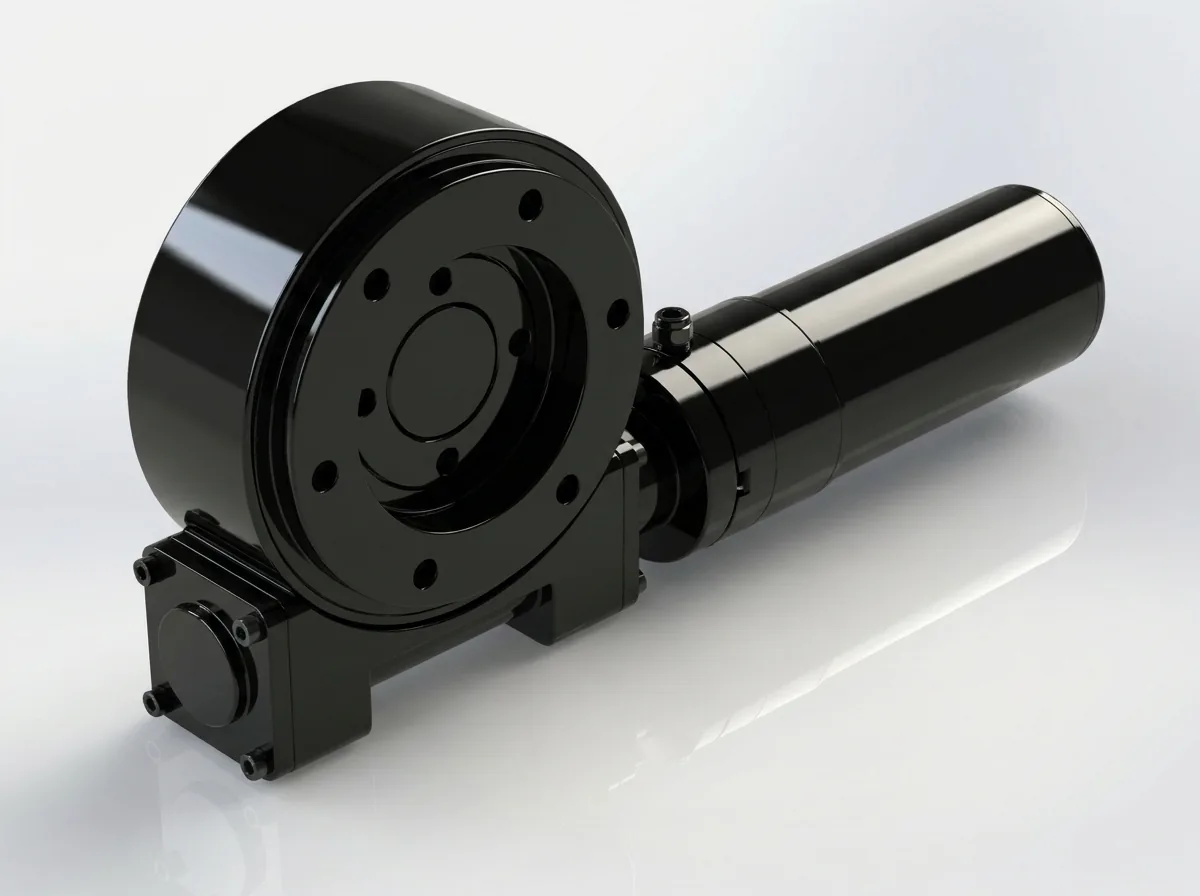

- Weight
- 45 lbs
- Rated voltage
- 12V
- Rated current
- 48A
- Rated speed
- 166±10% RPM
- Output torque
- 15 N*M (11 FT*LB)
- Reduction ratio
- 18:01
FIELD WORKFLOW
Versatile for any vehicle mount.
Plan the system around the use of the vehicle.
Optional

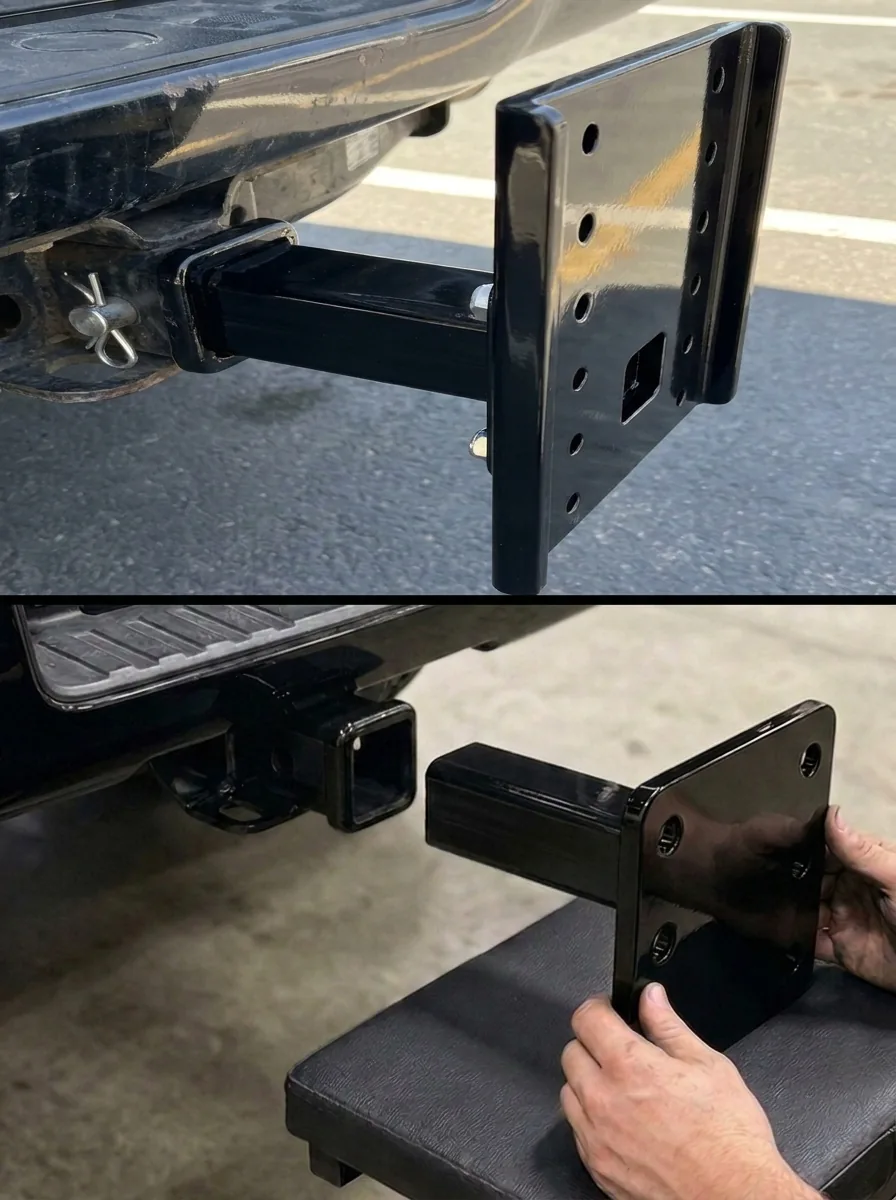

Hitch mount
2 inch hitch receiver for quick install and removal
Optional

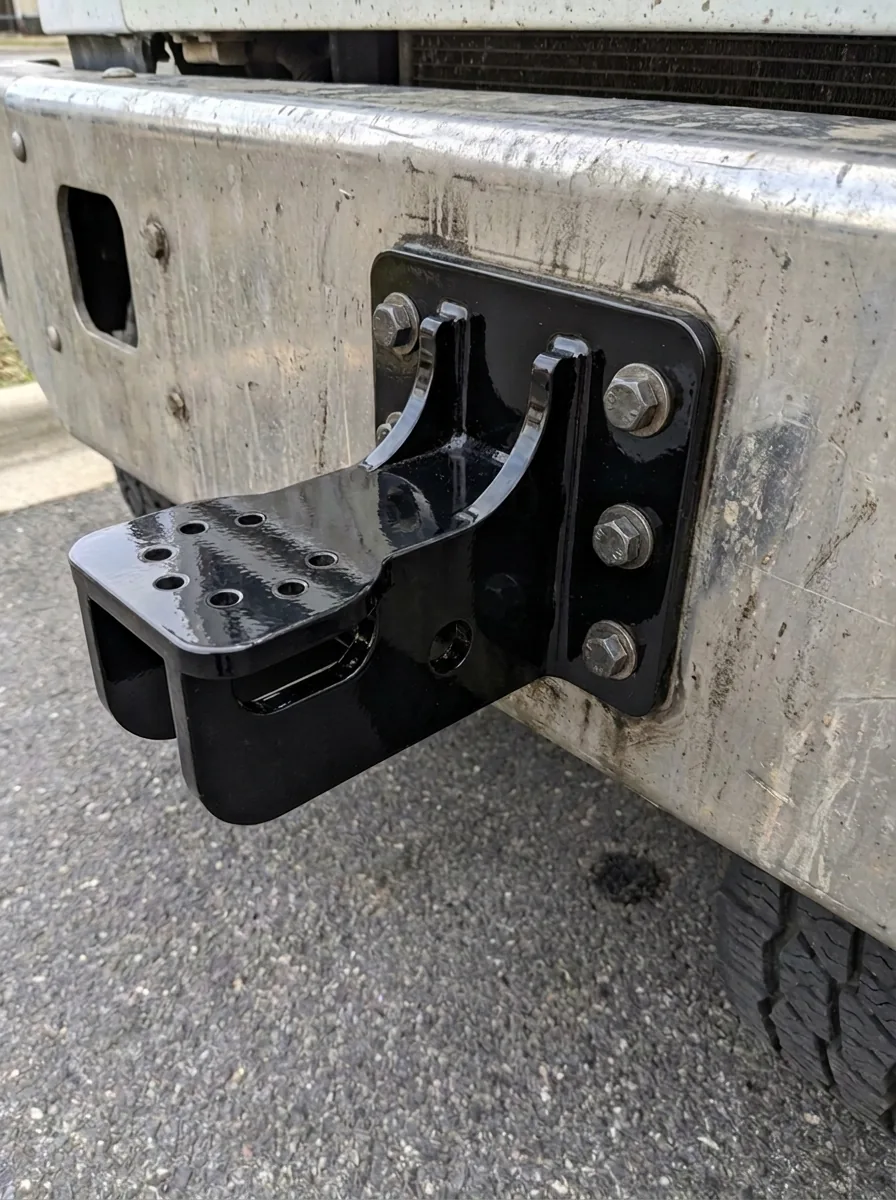

Universal adapter
Converts the bolt-on mount to a removable mount.
BUILT FOR THE WORK
One system. Every kind of crew.
Scroll through the field views to see how RS-LIFTER fits the equipment, route, and crew workflow.

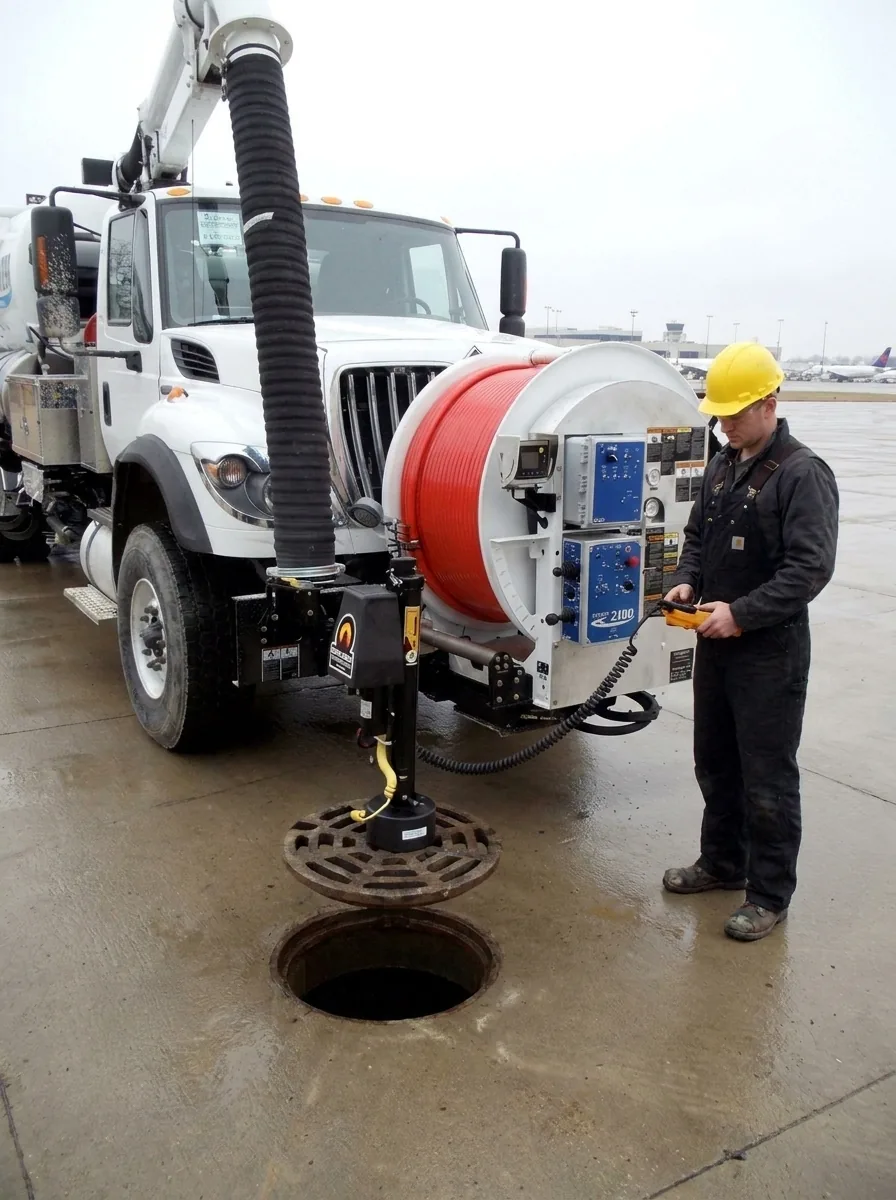

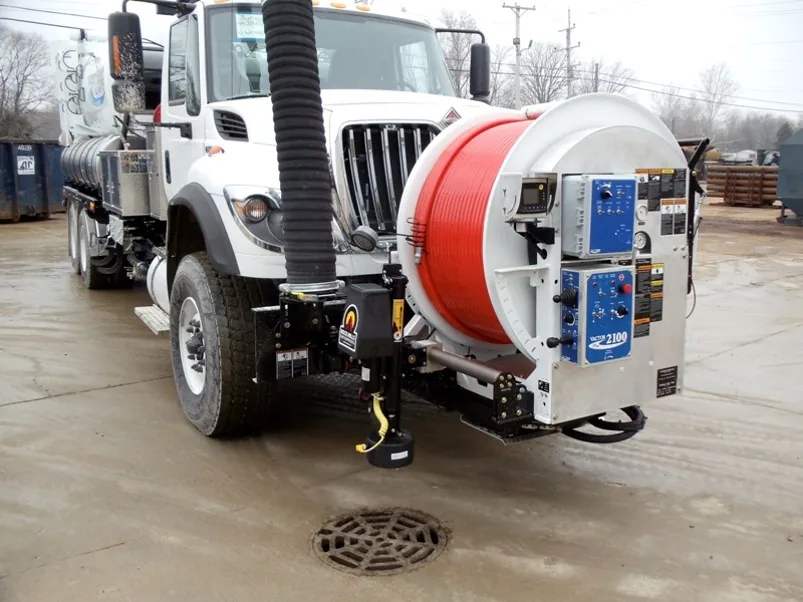

01 / Vac Truck Mounted

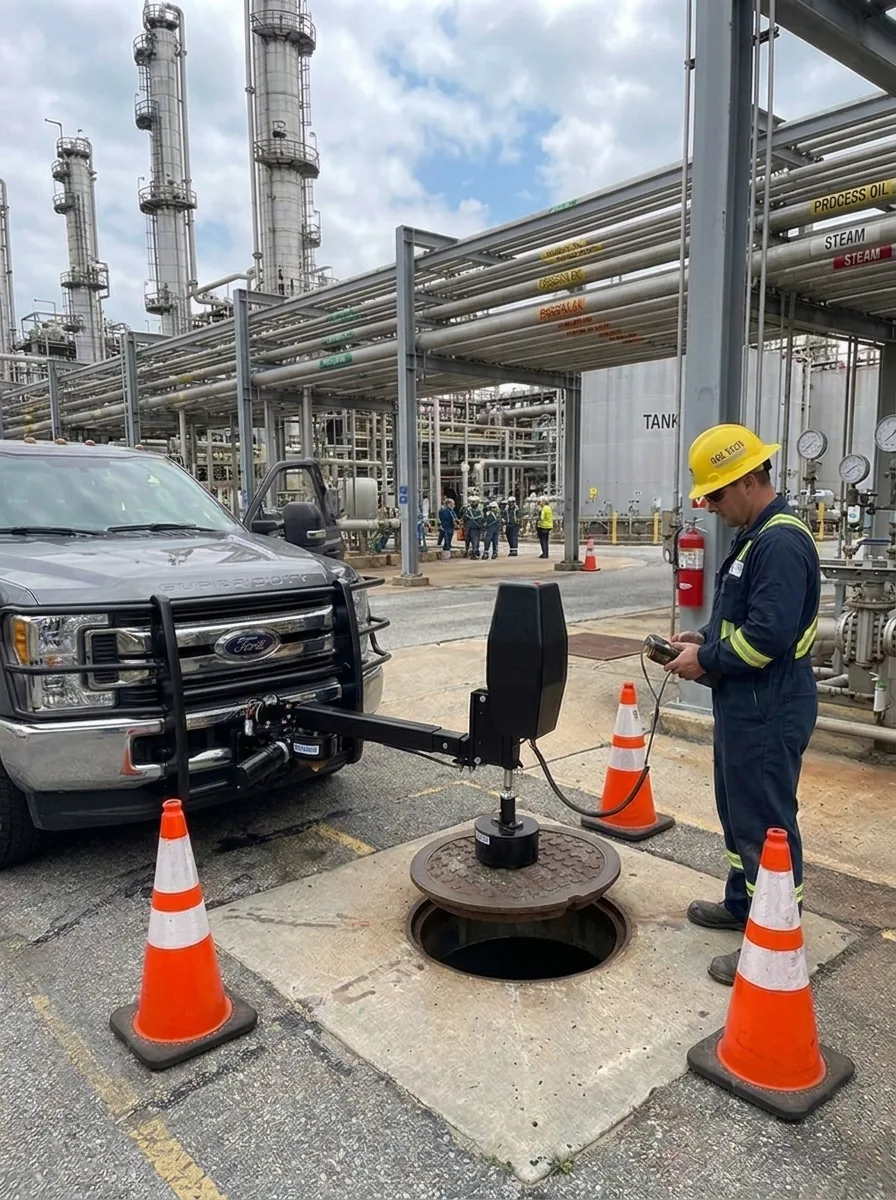

02 / Industrial Plants

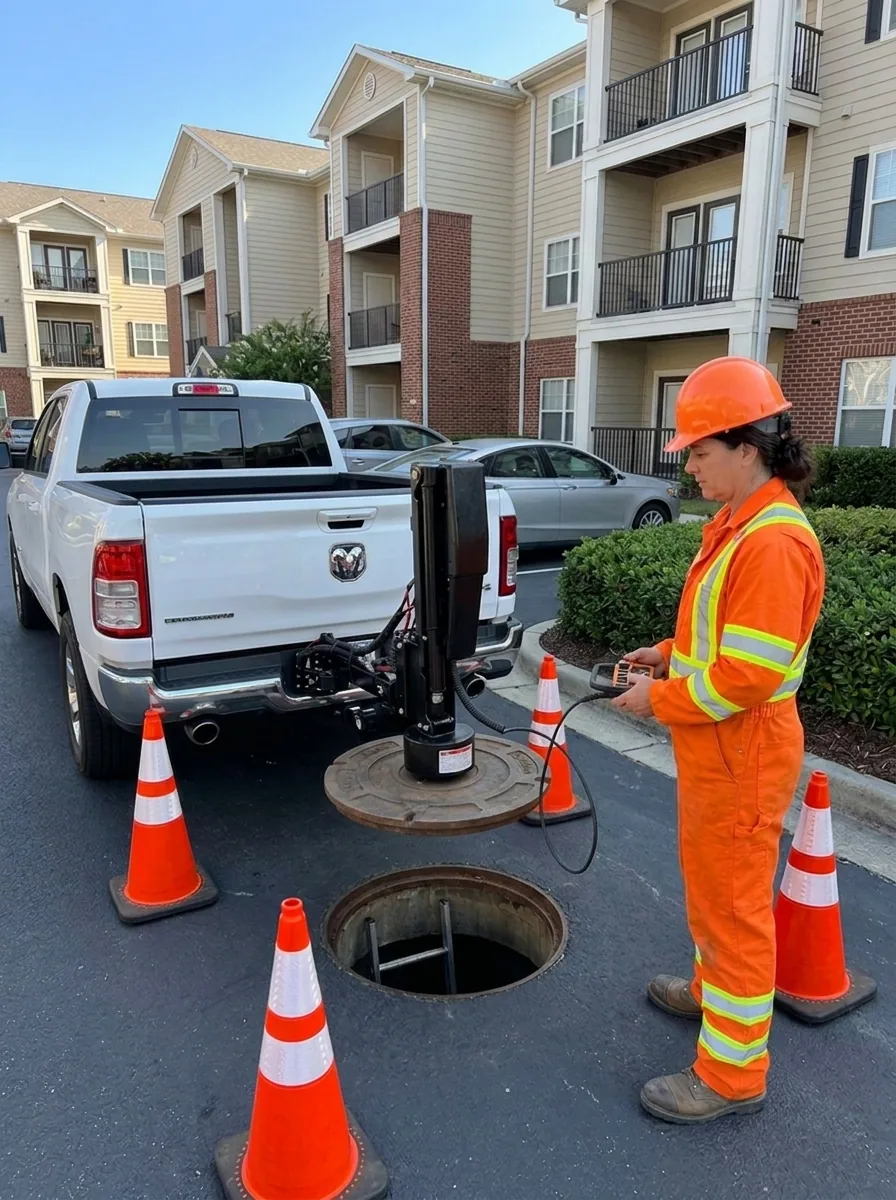

03 / Rear truck Mount

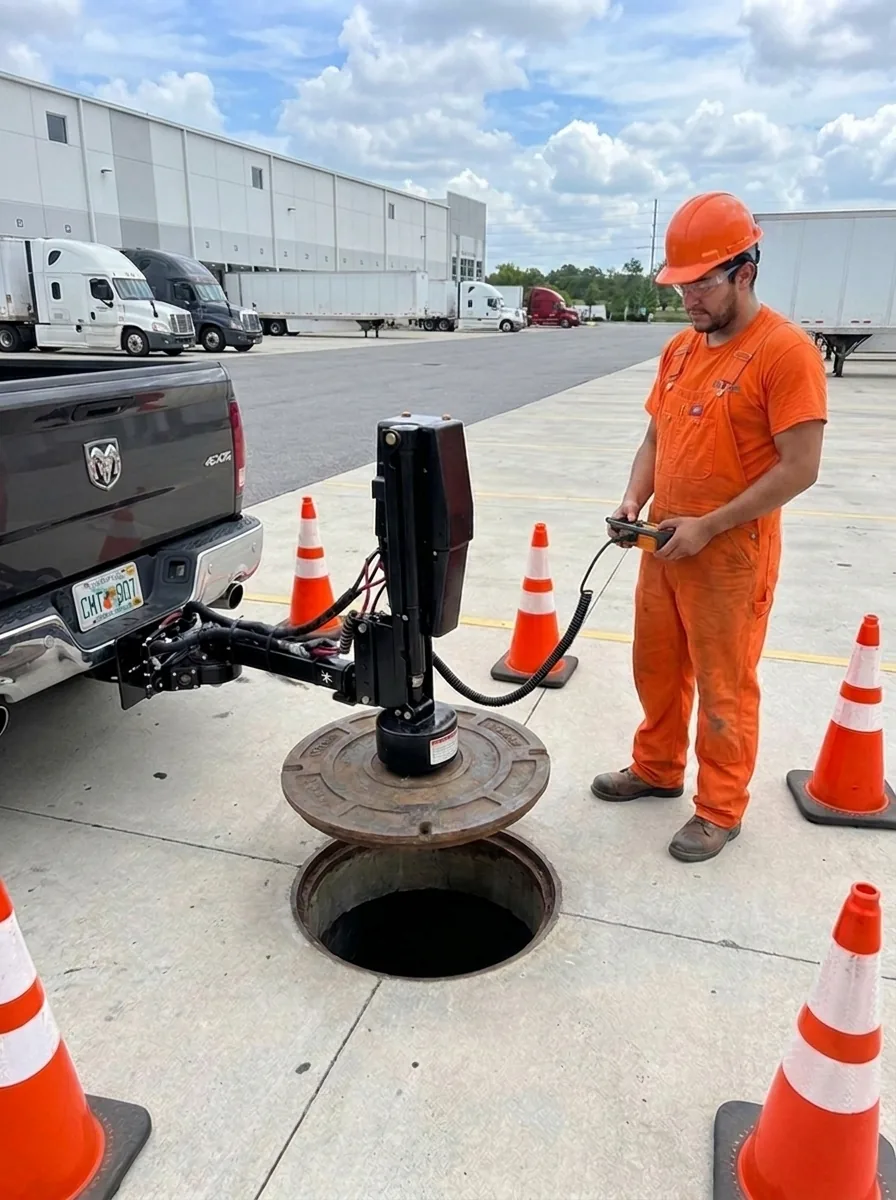

04 / Warehouse Areas
05 / Airports

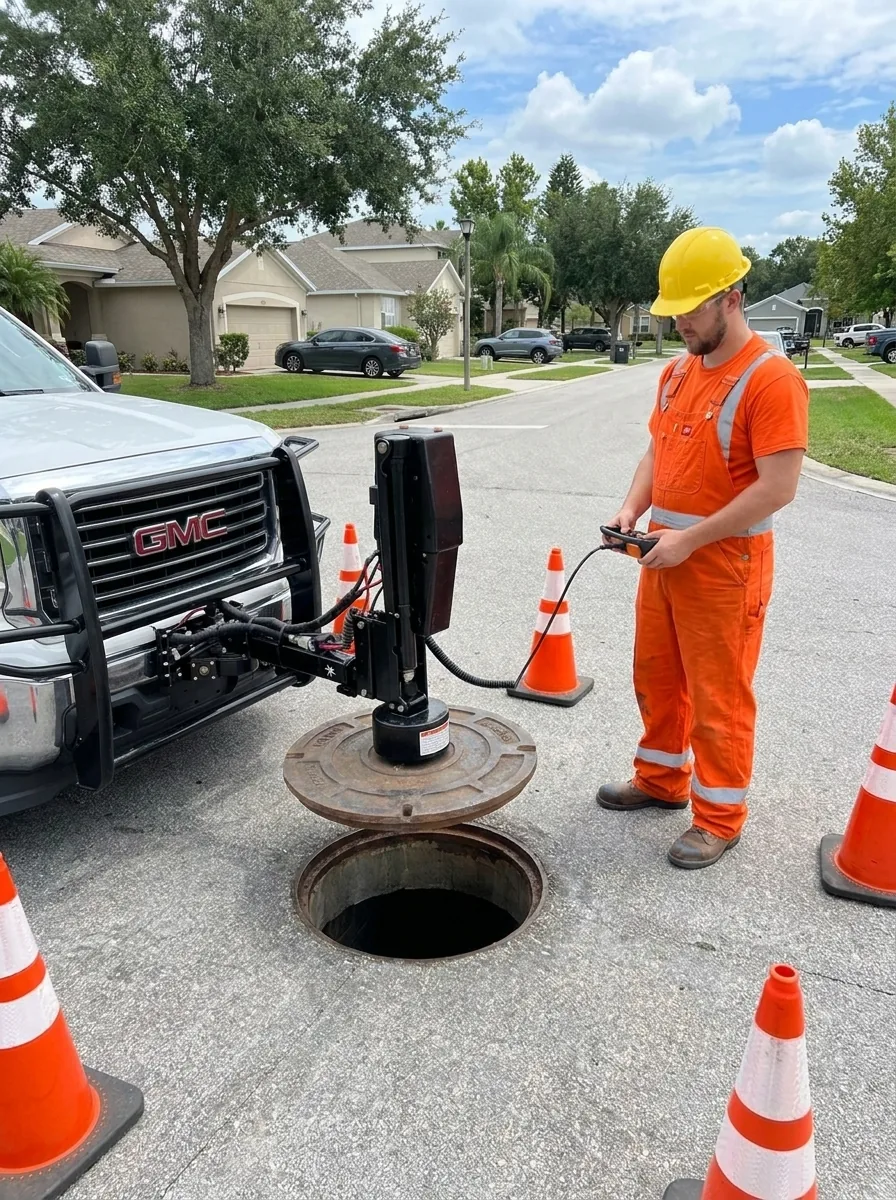

06 / Residential

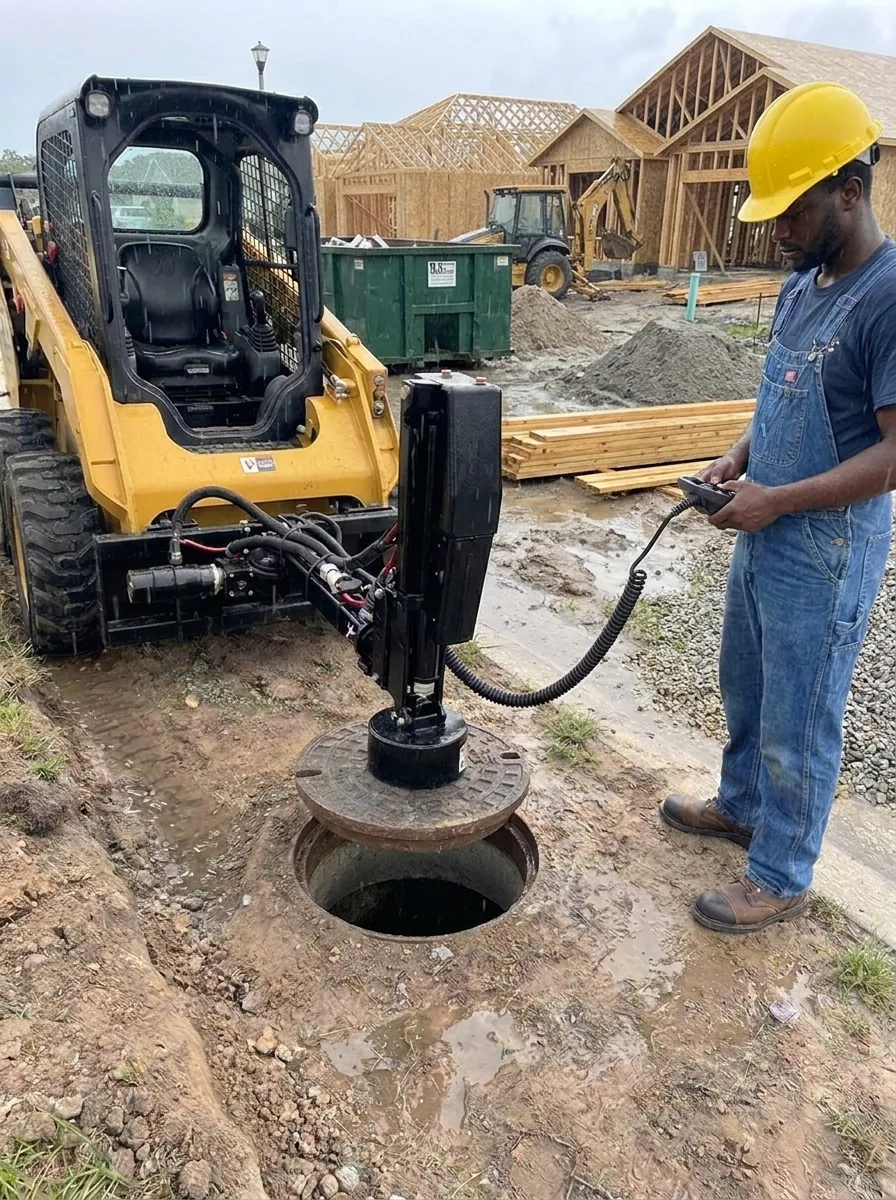

07 / Construction Sites
08 / Commercial Areas

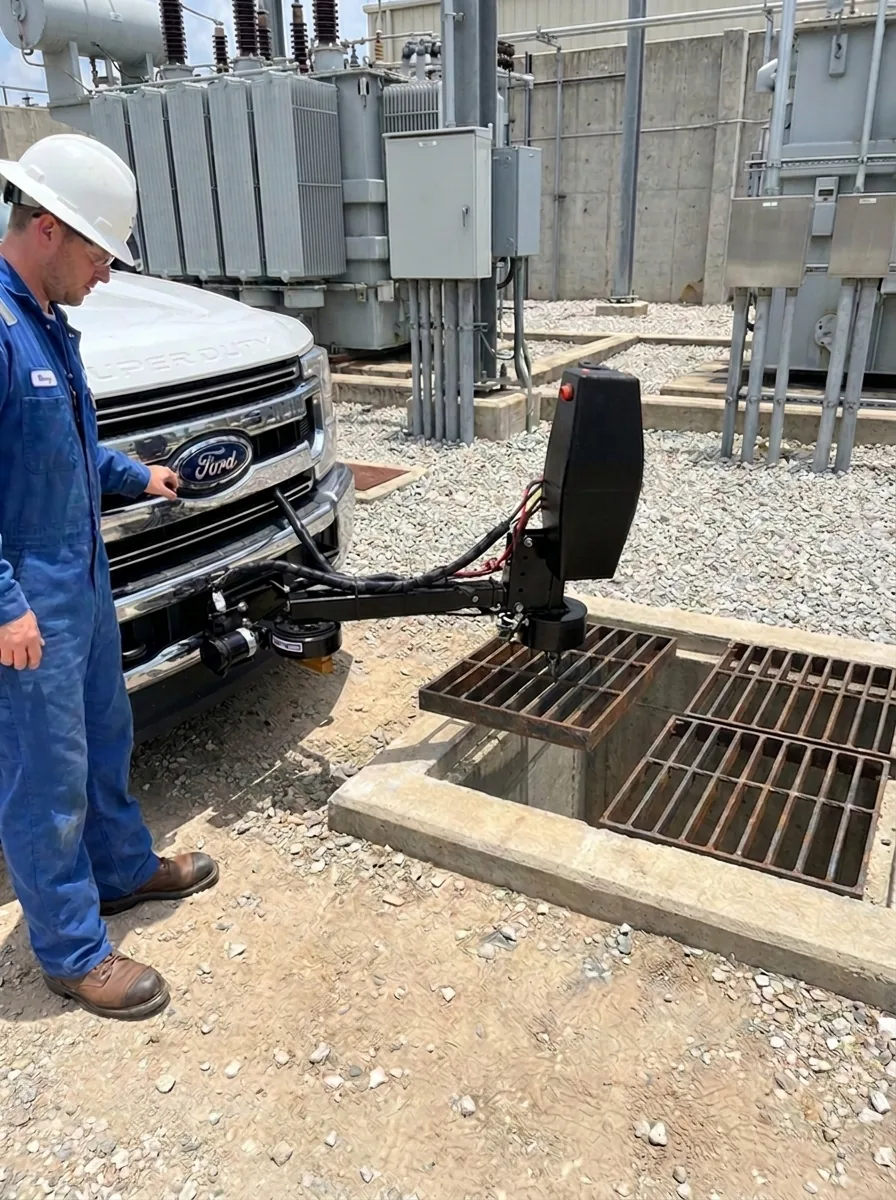

09 / Power Plants

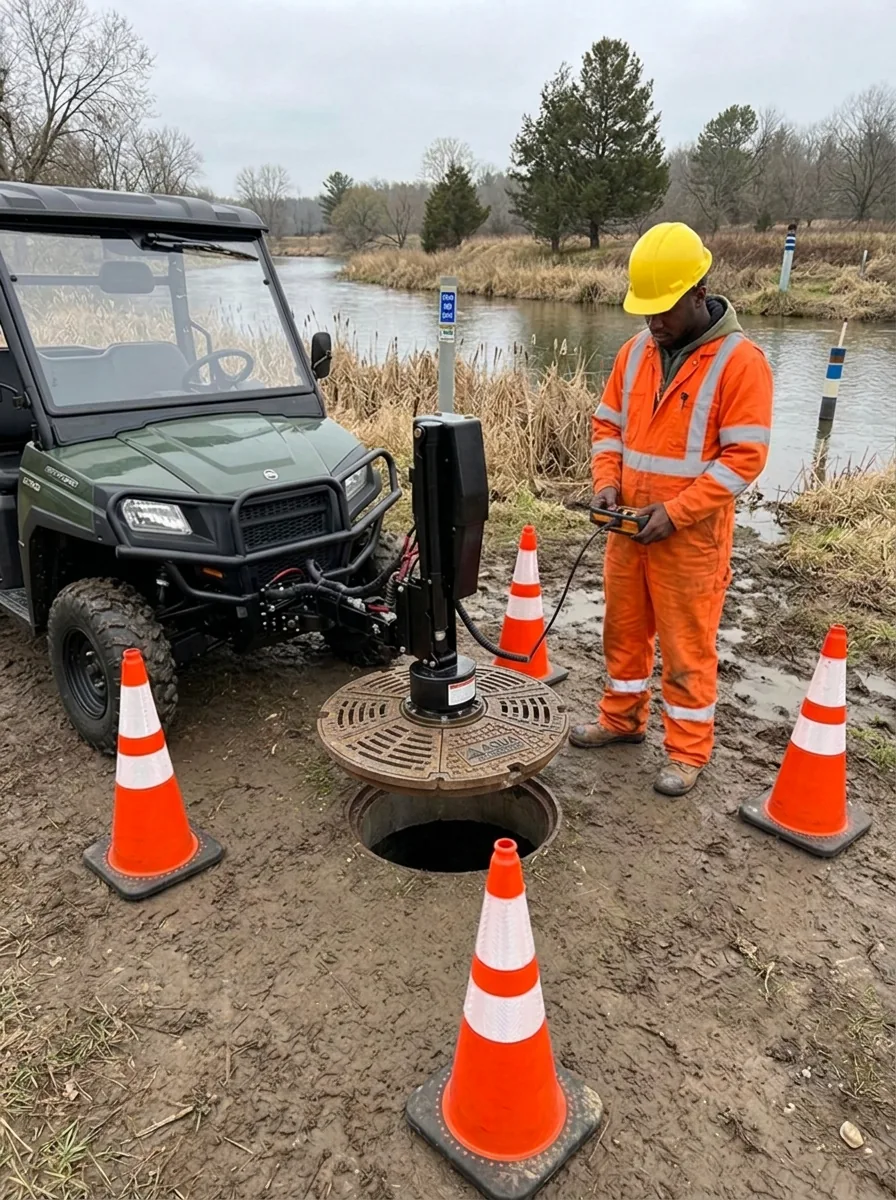

10 / River Easements

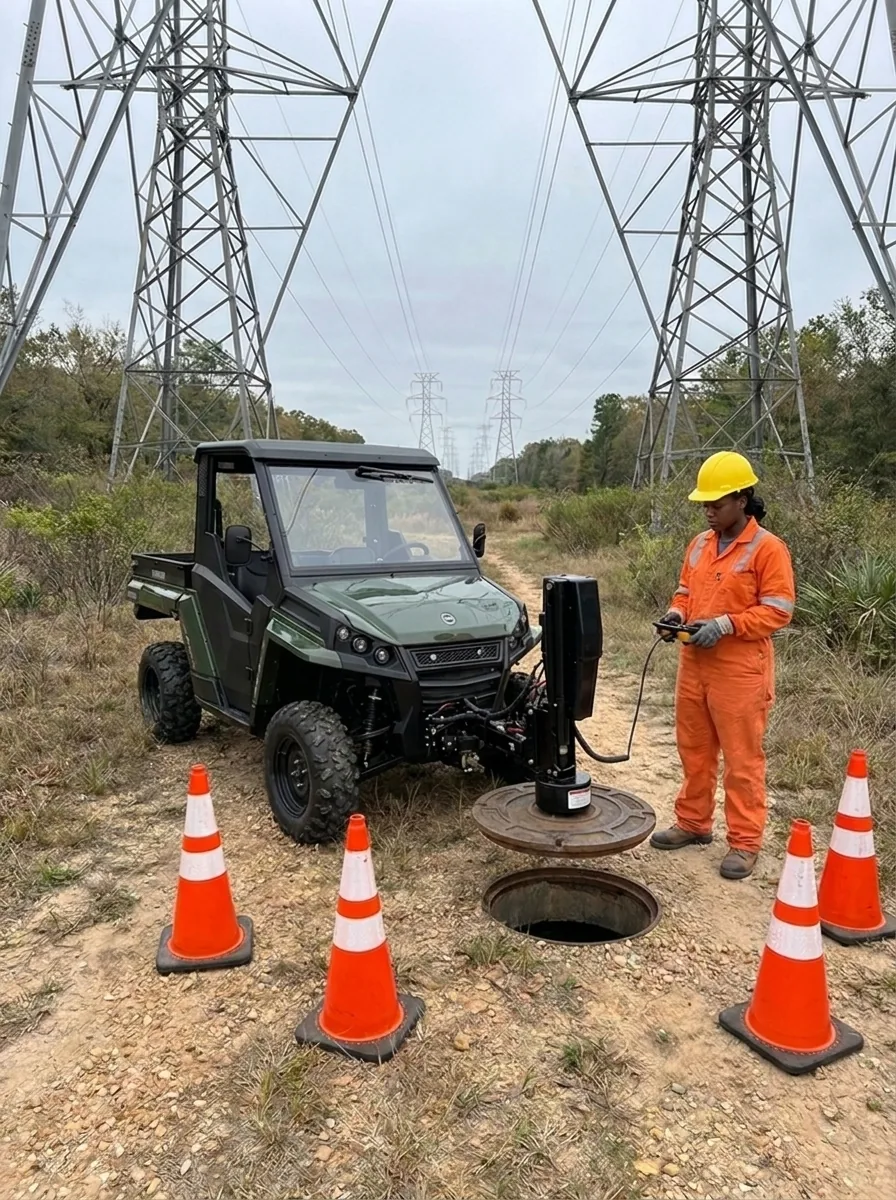

11 / Powerline Easements

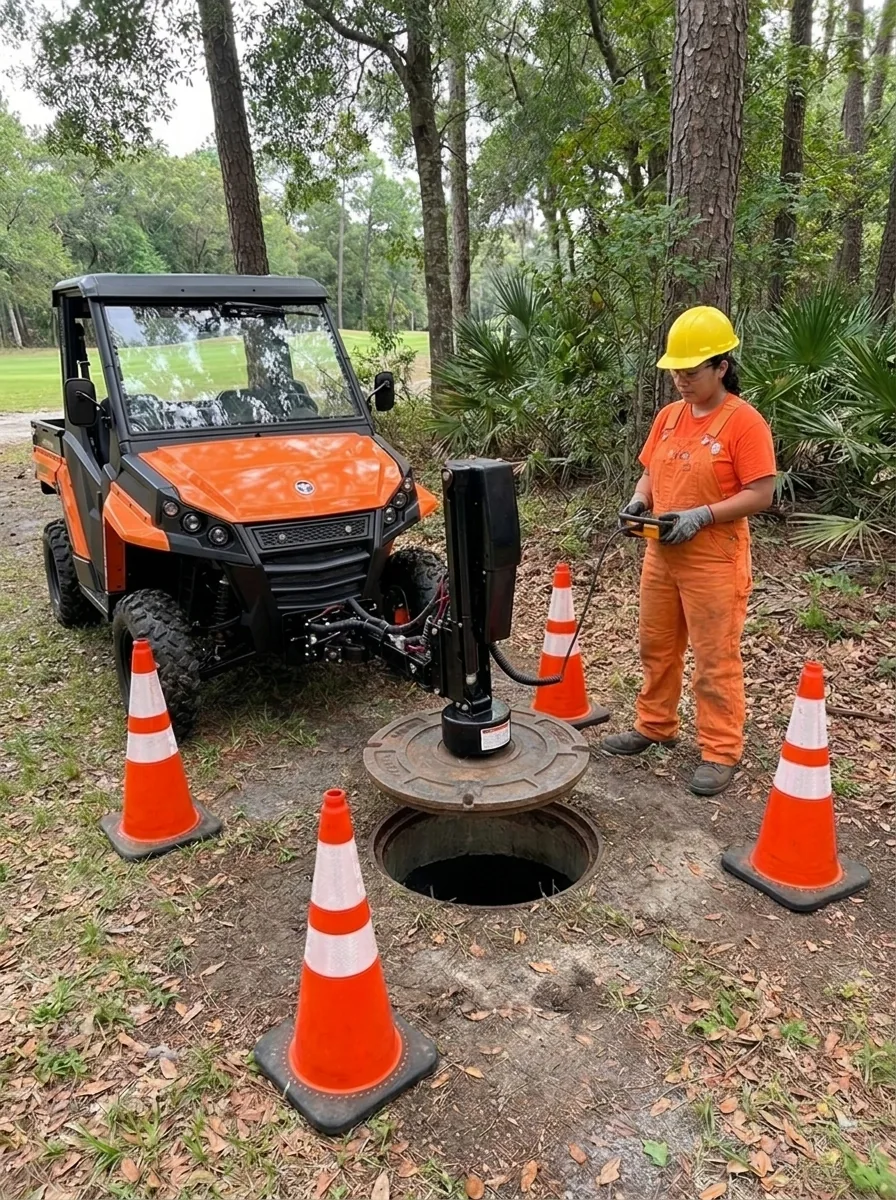

12 / Golf Courses
13 / Ocean front

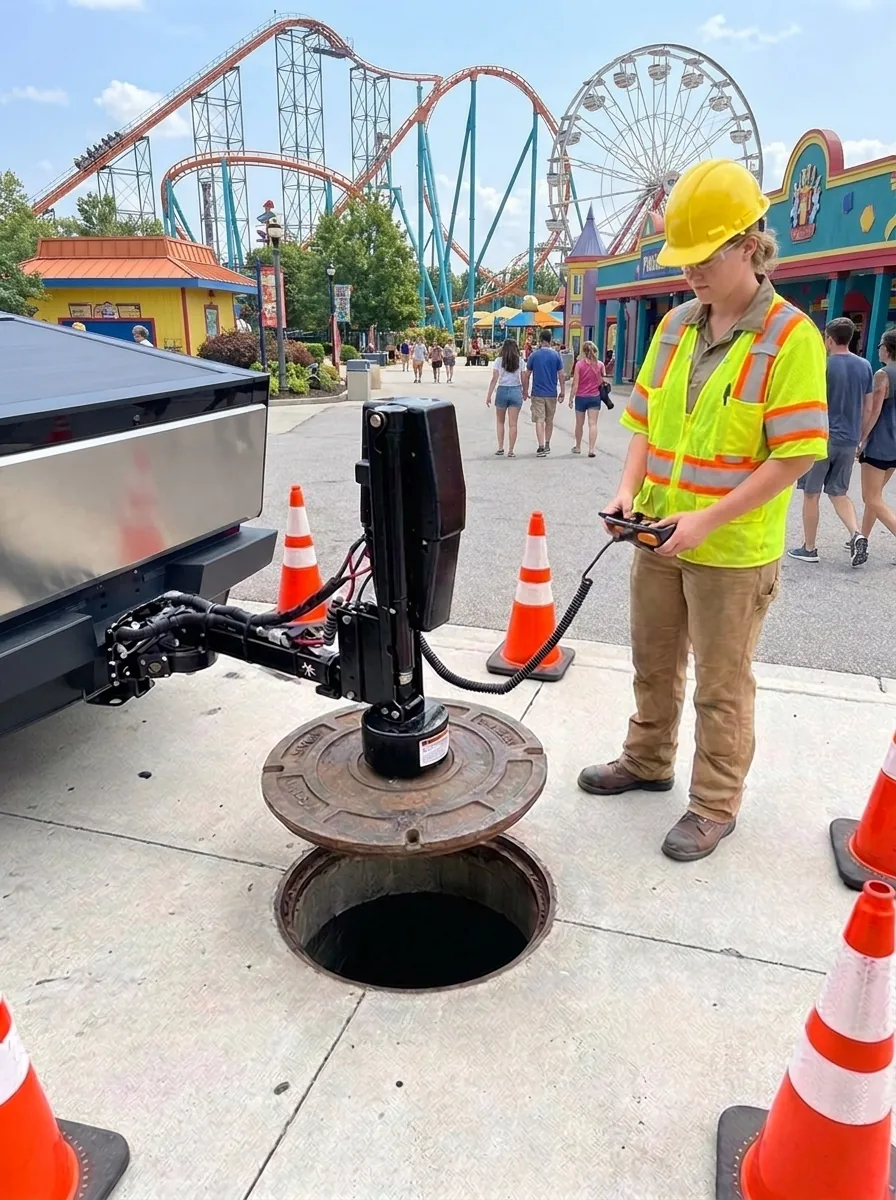

14 / Parks and Recreation

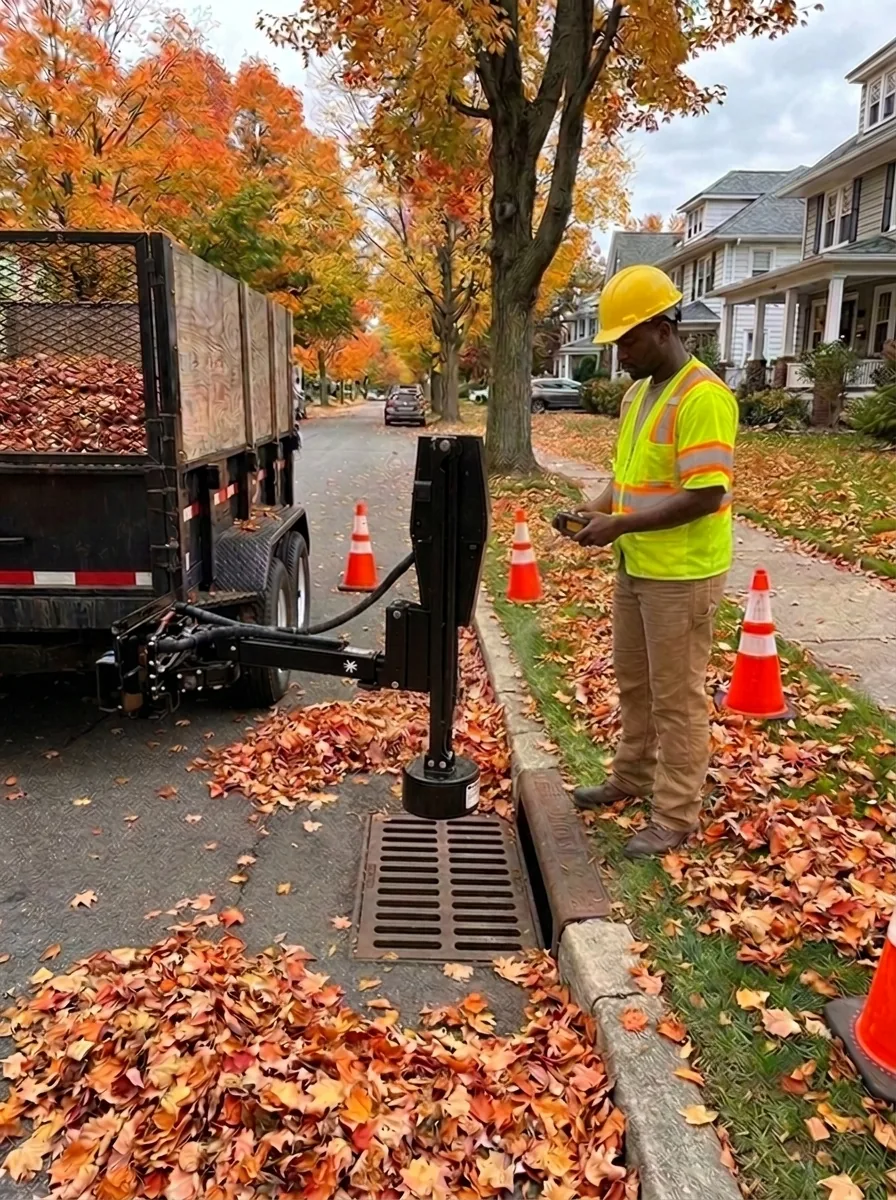

15 / Storm Cleaning
Scroll down to exploreSee applications →
THE ROCK SAFETY STANDARD
The flexibility field crews want. The results management expects.
Simple 3-step approach to using the RS-LIFTER

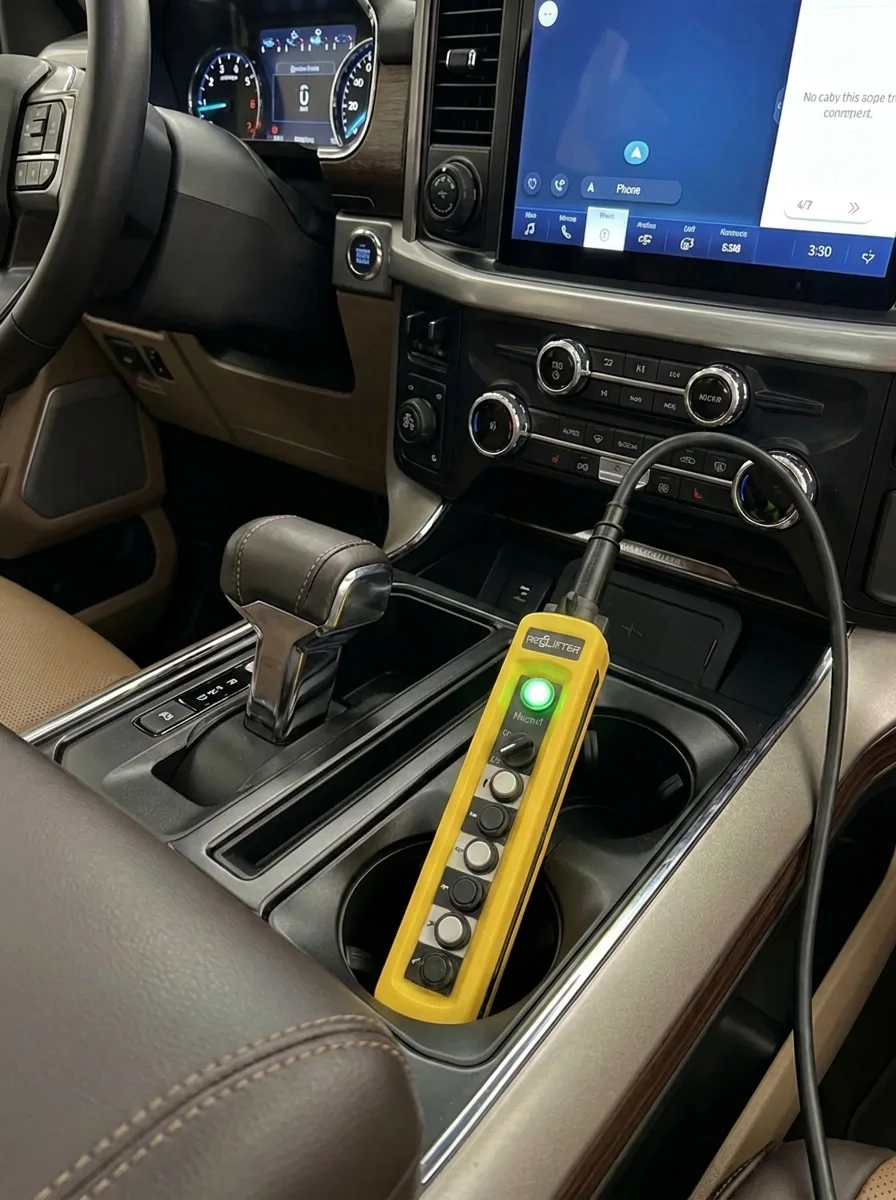

Explore safety features →Approach from inside your vehicle

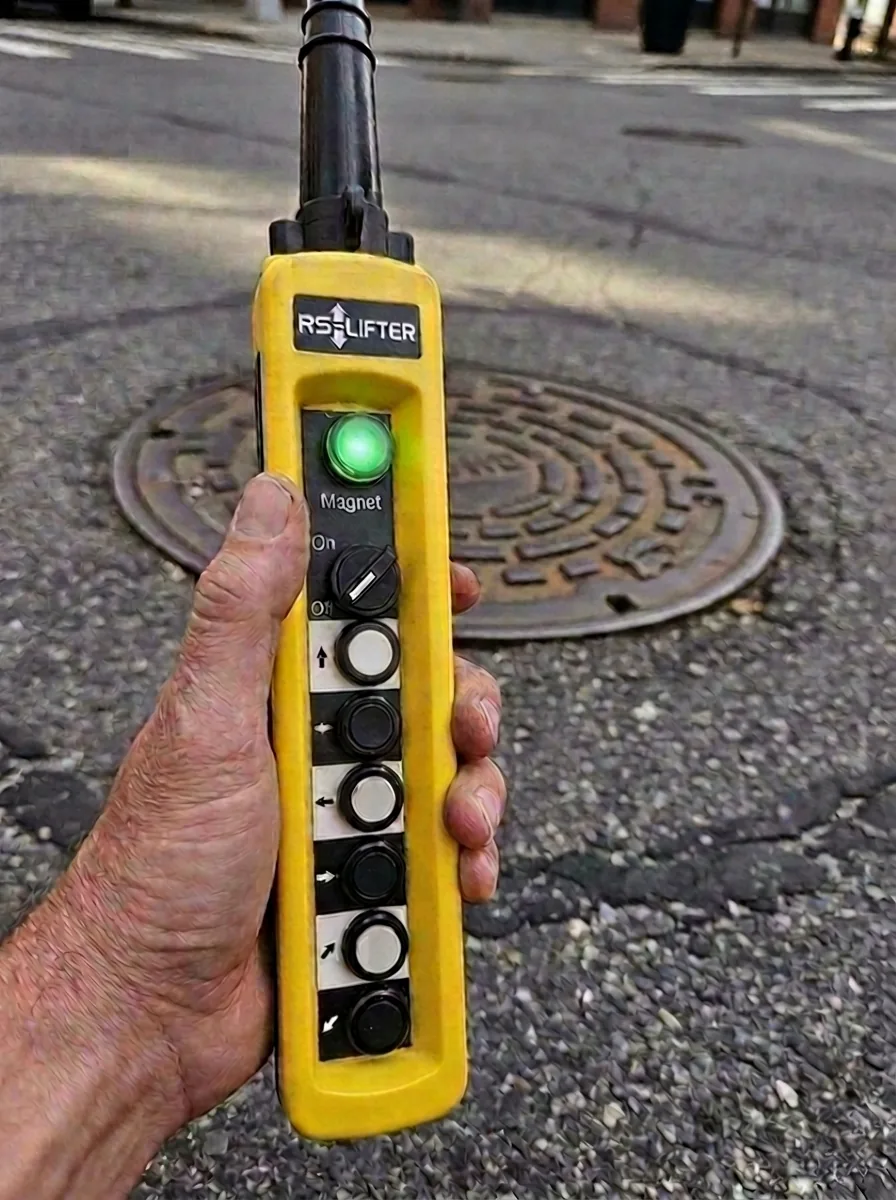

Use RS-LIFTER camera to spot the access opening cover or grate. Engage the lifter with the pendant remote. Operate the lifter while seated in the vehicle or from outside.
Activate powerful magnet
The magnet is lowered onto the manhole cover using a hydraulic piston, then activated from the pendant remote.
Dependable, powerful, electro-magnet technology for quick and easy removal of covers and grates.
Remove and return cover
Remove cover and place it away from the opening, all with the pendant remote.
No matter the texture of the cover, it will grip. The cover will return to its original rotational position.
QUICK ANSWERS
Remote access you can count on.
How is RS-LIFTER configured?
Configure the lifter to be controlled from inside or outside the vehicle. Select the correct mount for your type of vehicle.
What is needed for a quote?
Tell us about the crew, work area, equipment, and preferred method of contact. Rock Safety follows up by phone or email before an order is placed.
Can this system be paired with other Rock Safety equipment?
Yes. Rock Safety can discuss how the product fits with the rest of the field lineup.
REQUEST A QUOTE
Configure RS-LIFTER around your operation.
Clients typically receive a quote by email before placing an order.
