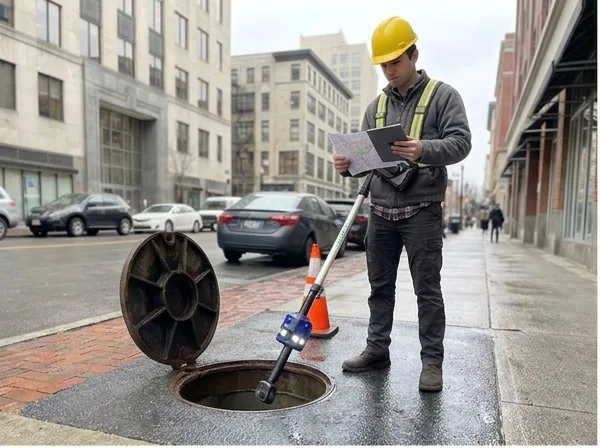

Plan
Review the access point and choose the pole configuration.
02 / RS-360 INSPECTION SYSTEM
RS-360 Inspection Camera
Most versatile and affordable 8K 360 inspection system
FIELD-READY SYSTEM
Configured around the crew, route, and work zone.
The RS-360 gives your crew a smarter, safer way to see what others miss.
Explore the safety approach →
02 / RS-360 INSPECTION SYSTEM
RS-360 Inspection Camera
Most versatile and affordable 8K 360 inspection system
01
Designed for real field conditions
Rugged, waterproof with 8 hour rechargeable battery.
02
Expand as needed
Additional telescopic poles can be attached to the RS-360 to reach any depth desired.
03
Keep equipment organized
Pelican case keeps the camera system and accessories organized between field days.
INTERACTIVE FIELD VIEWS
Inspect the camera from every angle.

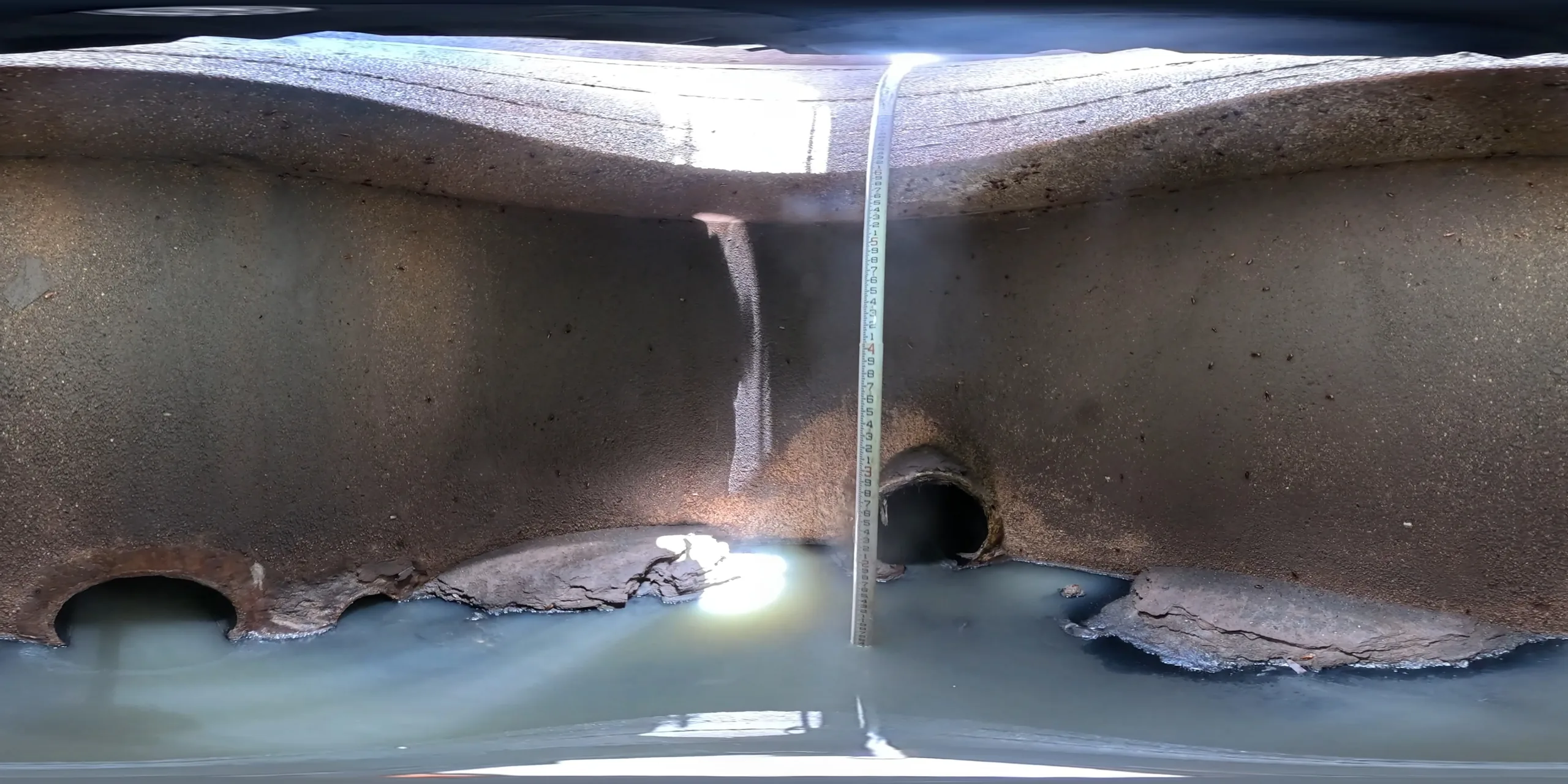

Explore the photos, then drag the 360° GoPro video to look around. Use the mouse wheel or zoom controls to inspect details.
Drag to look around · Scroll to zoom
Drag to look around · Scroll to zoom · Use ↶ ↷ to roll
Weight5 lbs
PoleTelescopic Carbon Fiber
Battery8 hr rechargeable

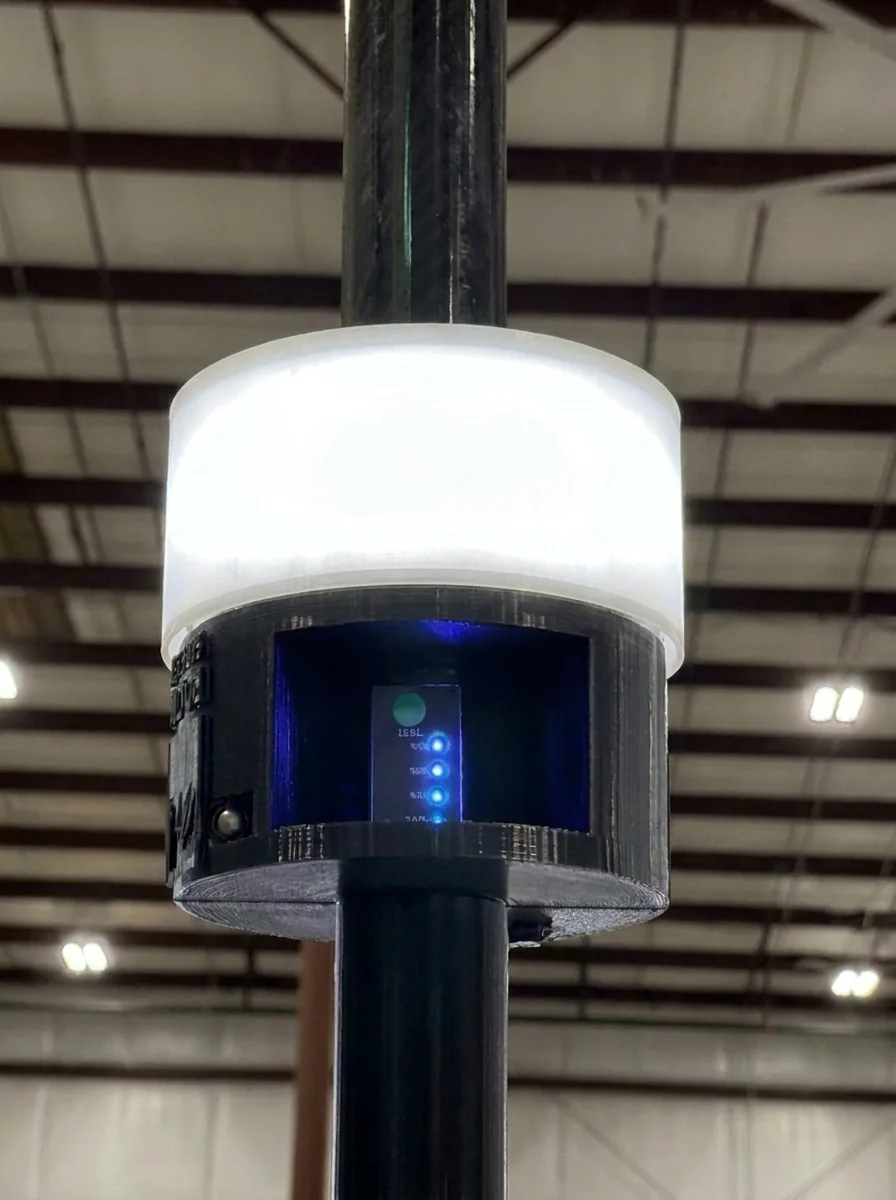

LightingLEDs 8000K
VideoMaximum 8K / 60 fps
Warranty1 year
FIT & FIELD WORKFLOW
Fit for the work, not a fix around it.
Review the product by its operating functions, then discuss the final configuration with Rock Safety.

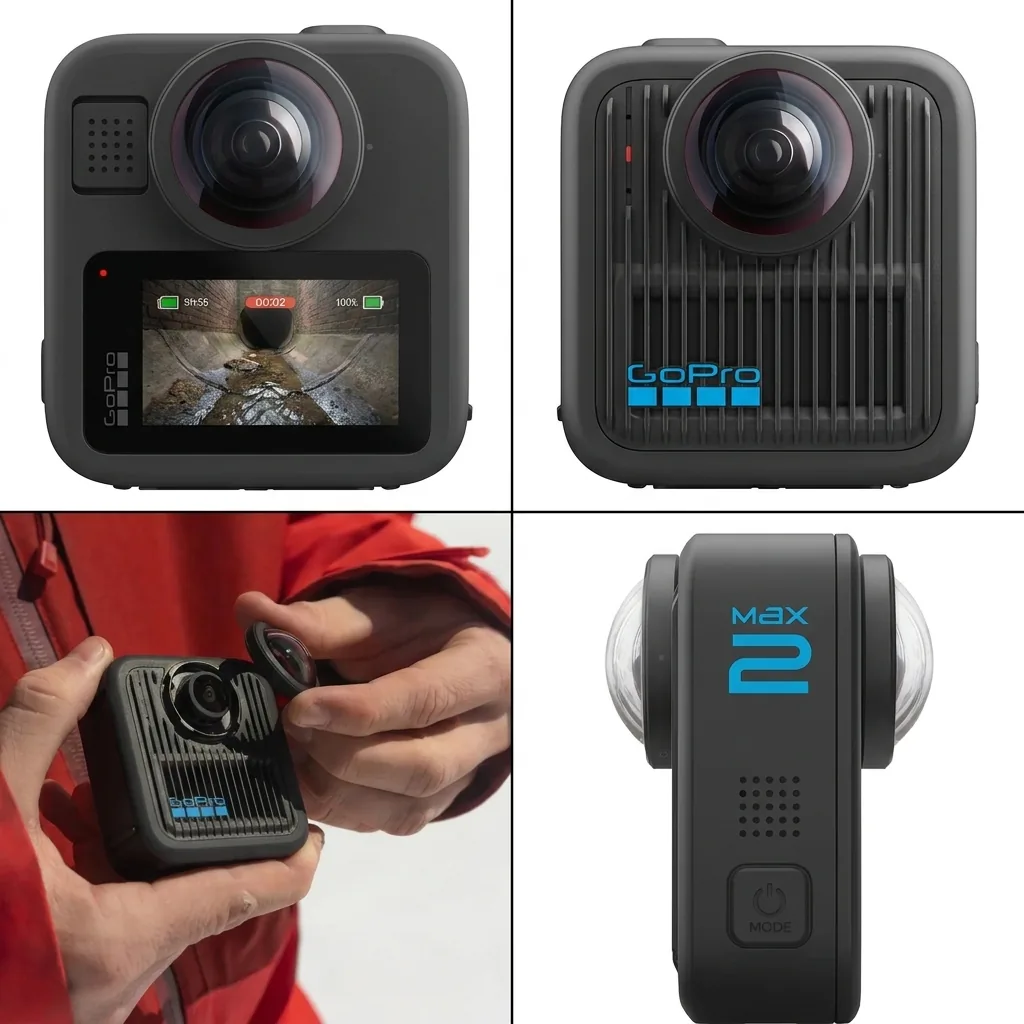

- Camera
- GoPro Max 2 (Standard) - Can be replaced with camera of your choice.
- Video Resolution
- True 8K at up to 30 fps; 5.6K at up to 60 fps
- Photo Resolution
- 12MP
- Sensor & Optics
- Dual 1/2.3"-type CMOS sensors with f/1.8 aperture lenses
- Audio
- 6 built-in microphones for spherical sound
- Lens Protection
- Twist-off replacement, no tools required.
- Battery
- Removable 1960 mAh Enduro battery (optimized for cold weather)
- Size & Weight
- 2.71"W x 2.51"H x 1.0"D (body); weight is 190g
- Connectivity
- Wi-Fi 6 (802.11ax), Bluetooth 5.3, USB-C 3.0, and microSD card storage
- Voltage
- 12VDC
- Intensity
- 8000K
- Operation Temp
- -4℉~113℉
- Lifespan
- 65000 hours
- Waterproof
- IP67

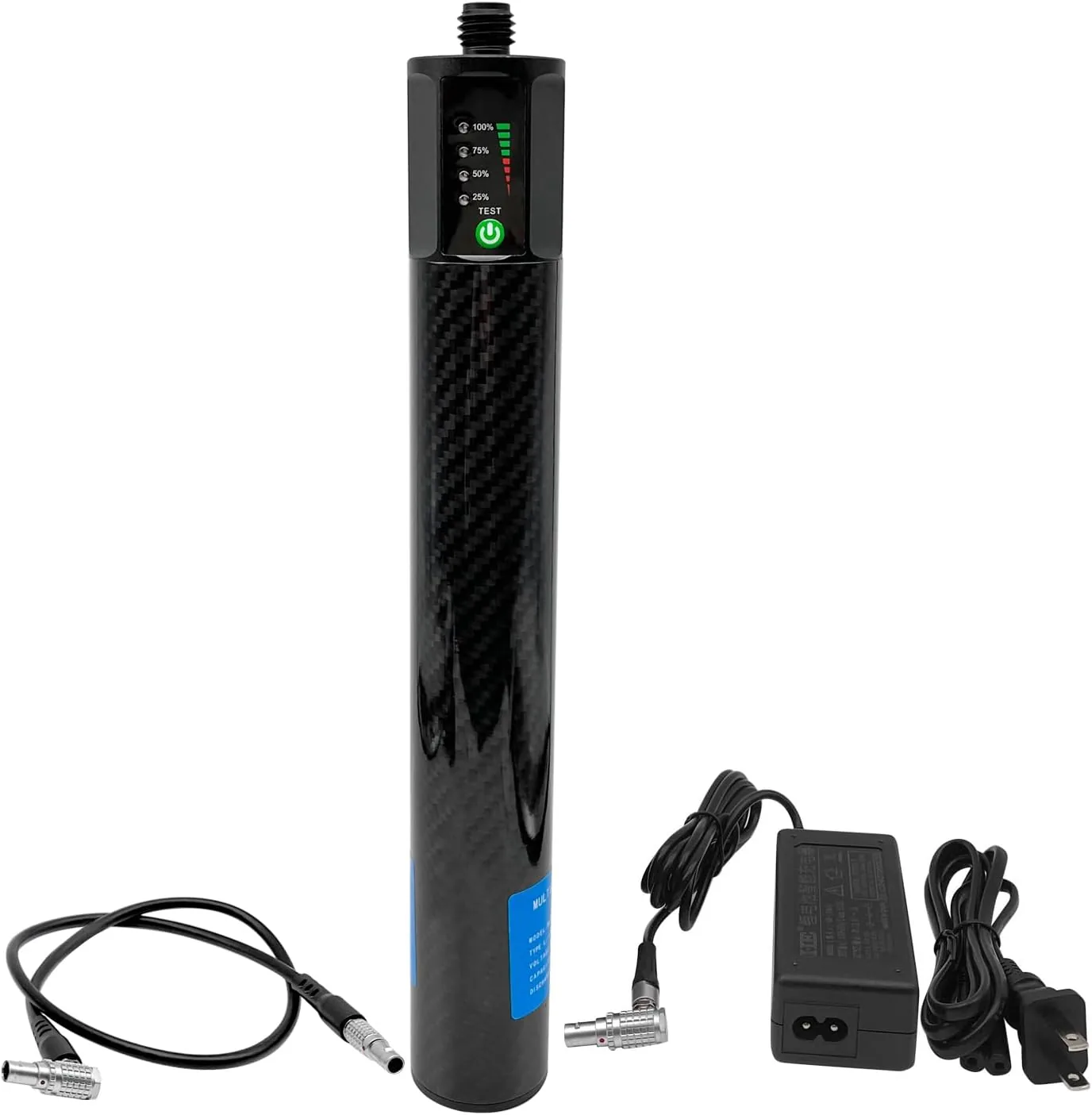

- Power
- 12VDC
- Output
- 20000mAh
- Type
- Lithium
- Rechargeable
- Yes
- Battery Level Indicator
- Yes
- Design
- Carbon Fiber
- Charger
- Included
- Weight
- 5 lbs

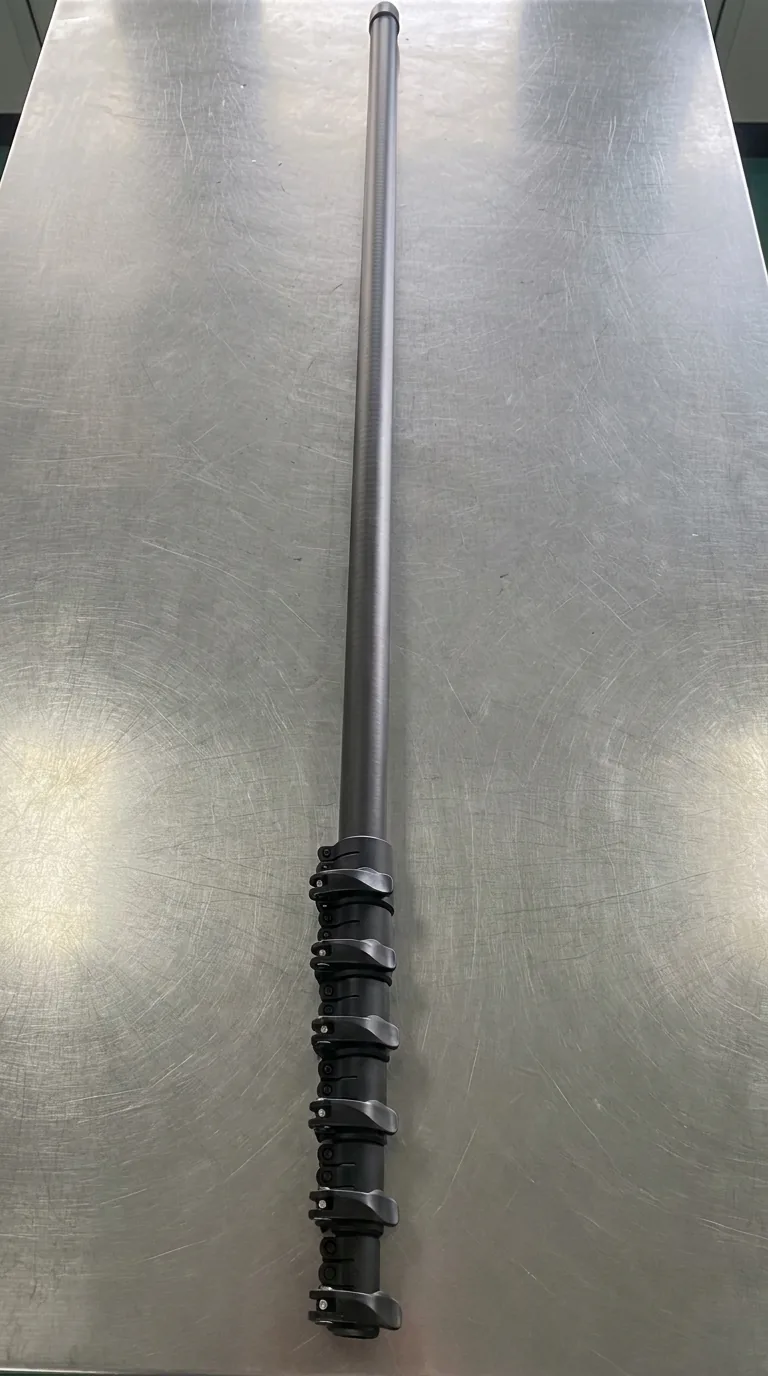

- Sections
- 5
- Material
- Carbon Fiber
- Length Closed
- 5 ft
- Length Opened
- 25 ft
- Extension
- Optional - 25 ft per extension
FIELD WORKFLOW
A clear process from vehicle to work area.
Plan the system around the sequence your crew repeats in the field.

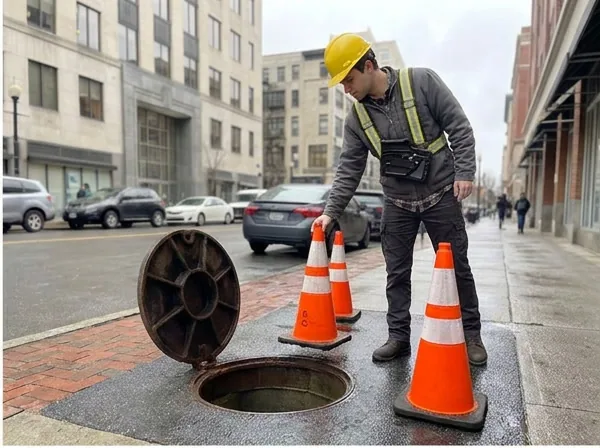

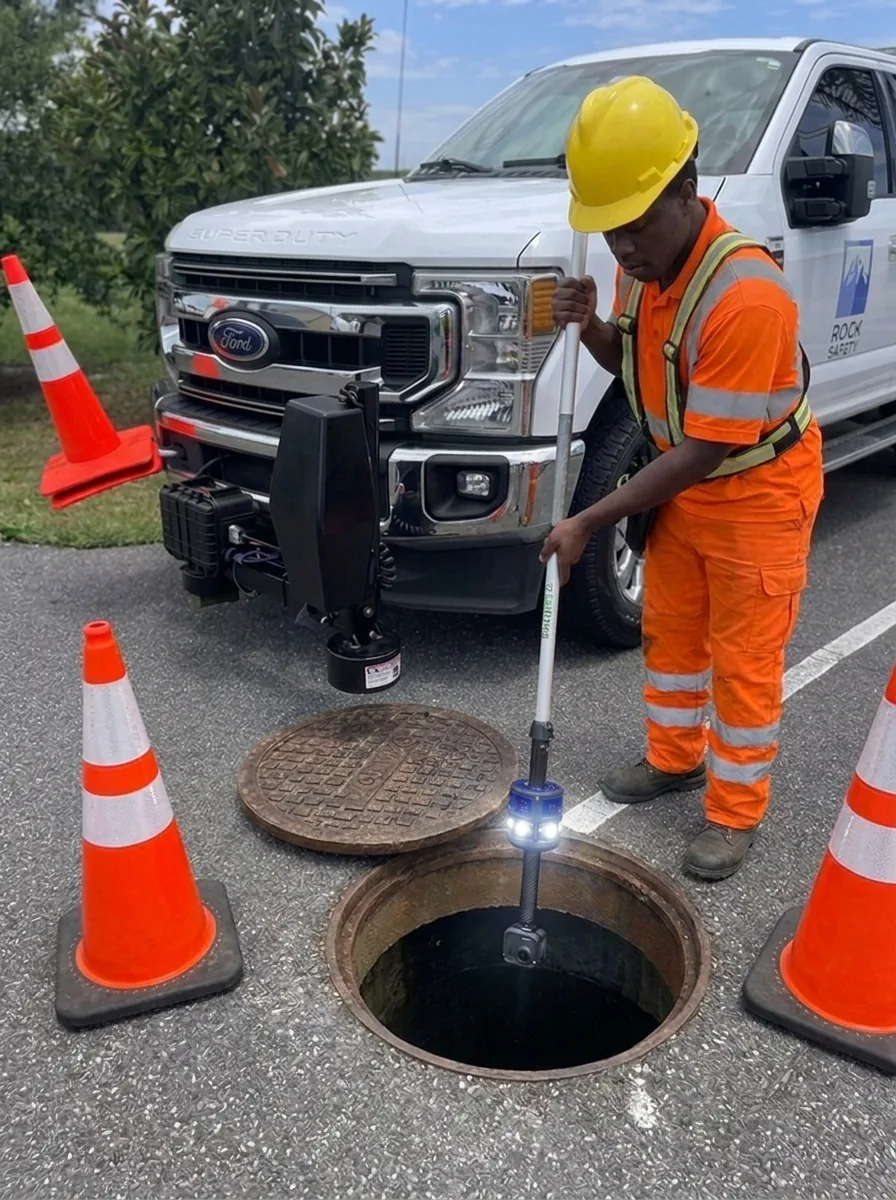

Position
Set the camera from the preferred working position.

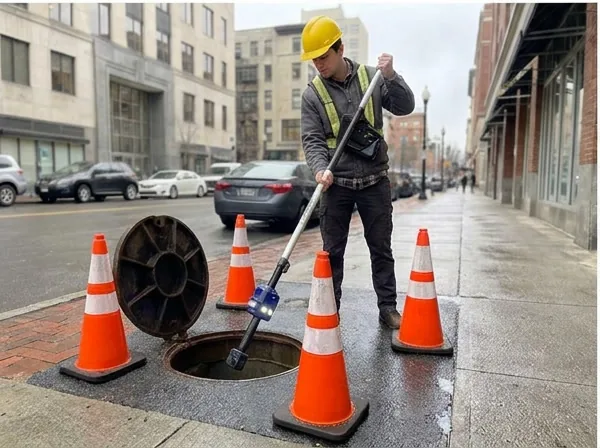

Inspect
Capture the visual information needed for the work.
BUILT FOR THE WORK
One system. Every kind of crew.
Scroll through the field views to see how RS-360 Inspection Camera fits the equipment, route, and crew workflow.

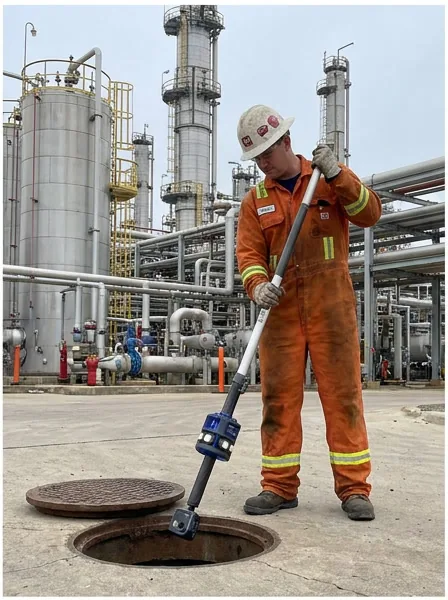

01 / Refinery access

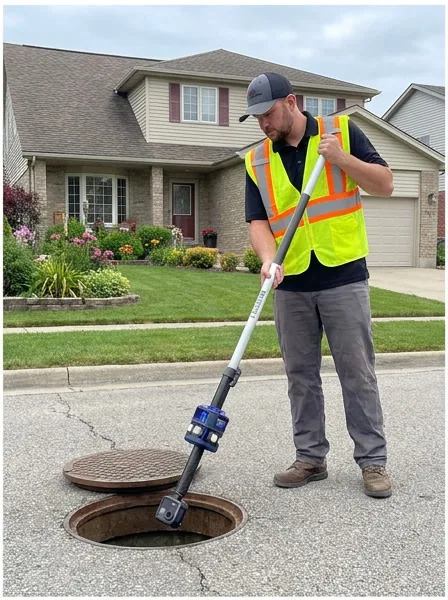

02 / Residential neighborhoods

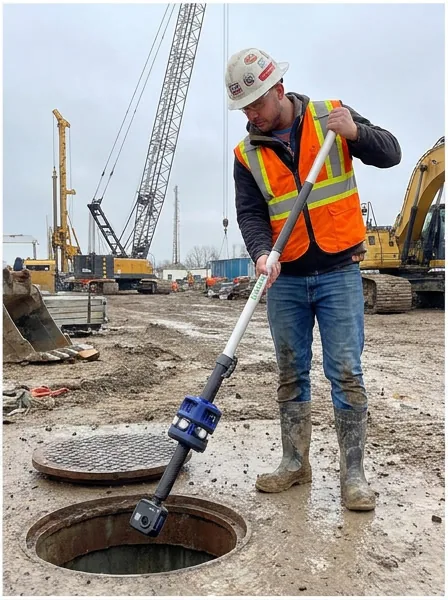

03 / Construction sites

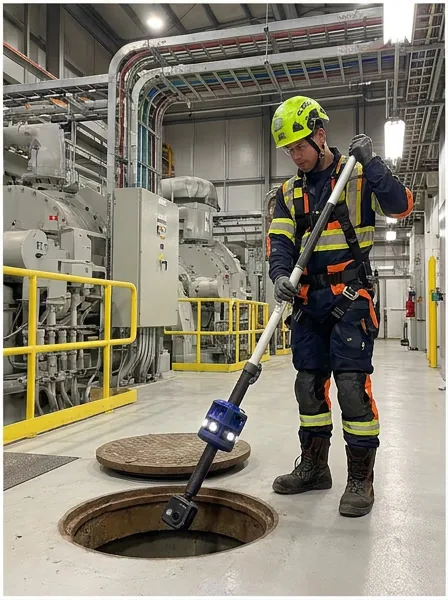

04 / Industrial plants

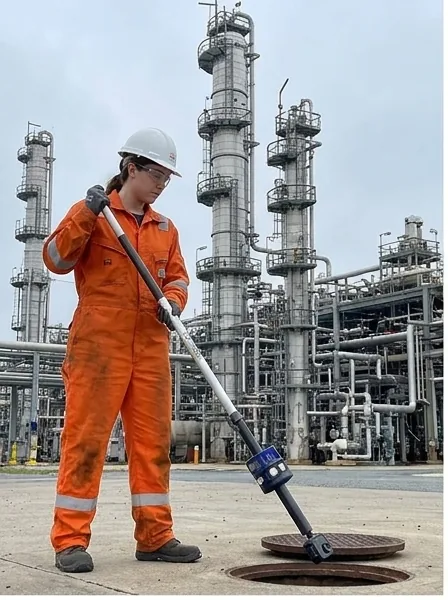

05 / Refinery work areas

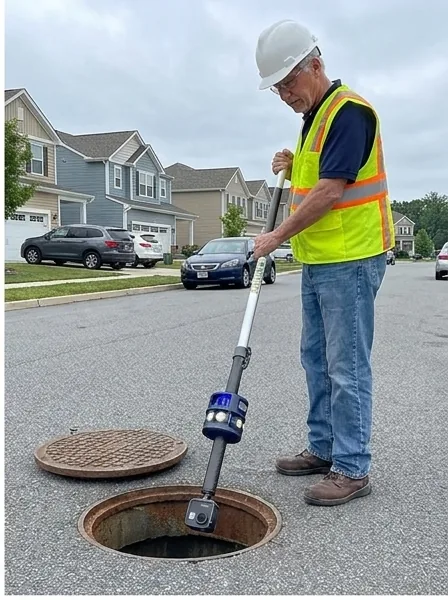

06 / Residential streets

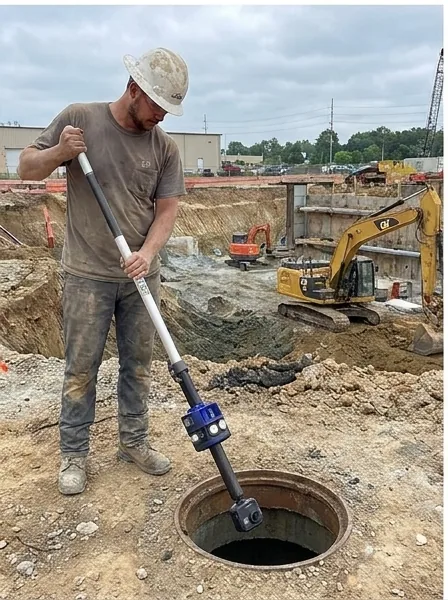

07 / Excavation sites

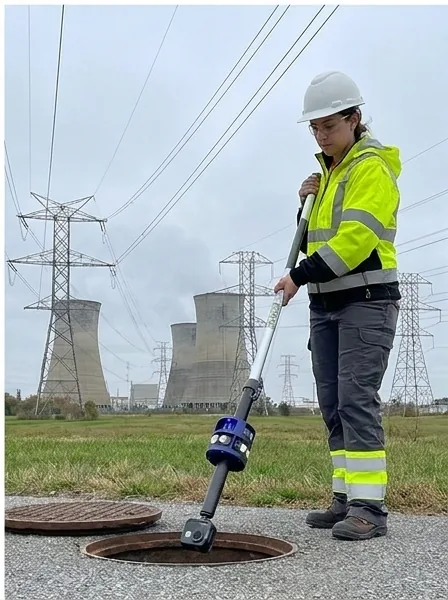

08 / Utility corridors

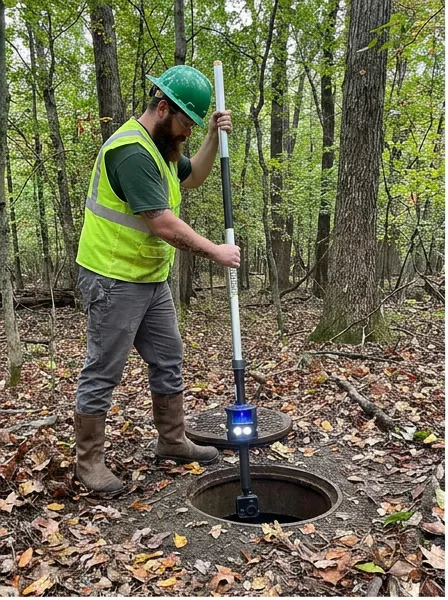

09 / Woodland access

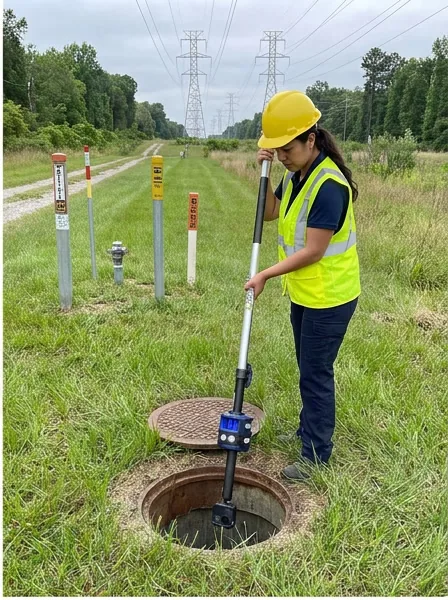

10 / Gas utility easements
11 / Airports

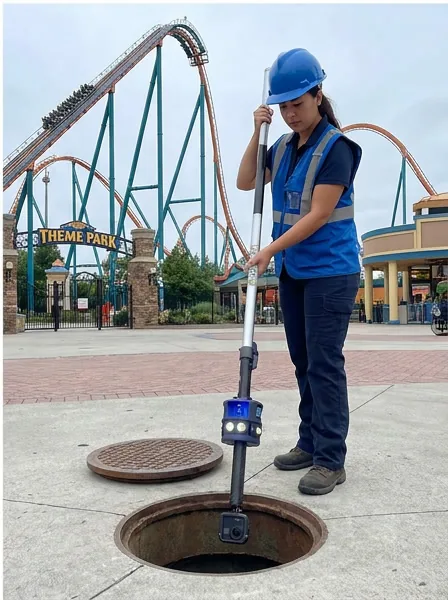

12 / Theme parks

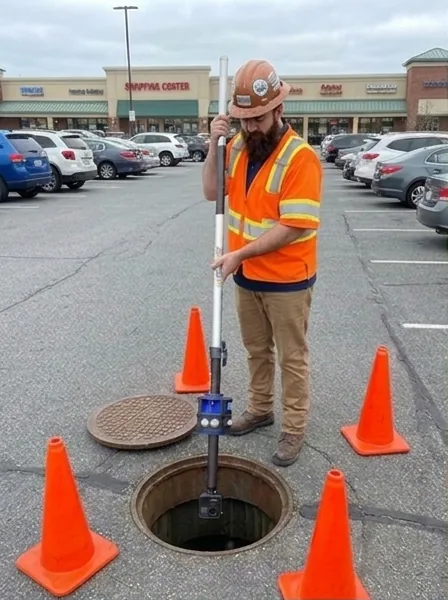

13 / Commercial parking lots

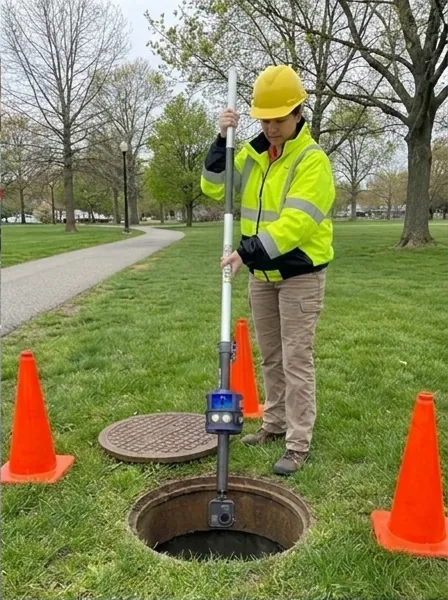

14 / Parks and recreation
15 / Roadside access
Scroll down to exploreSee applications →
THE ROCK SAFETY STANDARD
The flexibility field crews want. The results management expects.
Most versatile and affordable 8K 360 inspection system
Explore safety features →Versatile Defect Coding
Use the 360 video with any third party software or AI service.
Compatible Video Format
Use any free 360 video player to pan, tilt, and zoom in the inspection during playback or pause.
Secure Data Transfer
All videos are uploaded to the cloud automatically minimizing loss of data.
Subscription Fees
None, Ever.
QUICK ANSWERS
Remote access you can count on.
Which camera model do you include in your kits?
The GoPro MAX 2 ships standard with the RS-360. You can use any 360 camera of your choice, but Rock Safety recommends this model because of the replaceable protective lens.
Do I need to purchase/commit to specific software to use the RS-360?
Not at all. The RS-360 works with a free GoPro app, and the cloud storage is also free if it originates from a GoPro camera. GoPro videos can be uploaded to any NASSCO software and AI Defect Coding Software of your choice.
What kind of warranty is included with the RS-360?
Every purchase includes a standard 1-year warranty from the date of purchase, covering defects in operational parts and workmanship — including the camera itself — when used under normal operating conditions.
This warranty does not cover damage resulting from accident, neglect, improper exposure to water or chemicals, shock, impact, or improper storage.
If a covered part fails within the warranty period, simply contact us to have it returned. We'll repair or replace it at no cost.
For repairs outside the scope of warranty, we'll quote individual component replacements as needed.
How do the extension poles connect?
Need more reach? Just add on.
The standard telescopic pole extends 25 ft, with threaded connections on both ends. When you need to go deeper, Rock Safety extensions screw right on — no adapters, no hassle. Each one adds another 25 ft of reach.
Stack them as high as the job demands.
